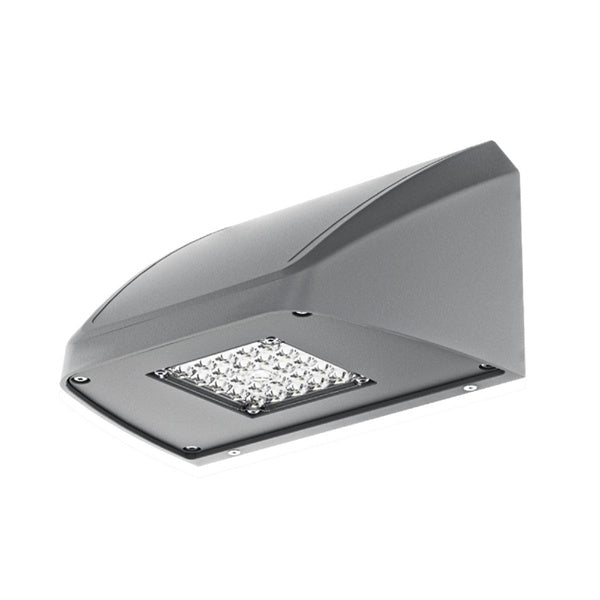

Beacon VPW1-24L-25-35K8-3-UNV-BLT-BTS-PC-F-2DR Viper LED Wallpack, Size 1, 3000 Lumens, 3500K, 80 CRI, Type 3 Distribution, 120-277V, Black Matte Textured, Bluetooth, Photocontrol, Dual Driver

PRODUCT FAMILY SPECIFICATIONS

CONSTRUCTION

• Die-cast housing with hidden vertical heat fins that are optimal for heat dissipation while keeping a clean smooth outer surface
• Corrosion resistant, die-cast aluminum housing with powder coat paint finish
• Powder paint finish provides durability in outdoor environments. Tested to meet 1000 hour salt spray rating


OPTICS

• Entire optical aperture illuminates to create a larger luminous surface area resulting in a low glare appearance without sacrificing optical performance
• 2700K, 3000K, 3500K, 4000K and 5000K CCTs
• Zero uplight distributions
• LED optics provide IES type II, III and IV distributions.
• Silicone Strike Optics (20, 40 LED counts)
• Maximizes uniformity in applications, provides the highest LPW, and meets IK10 impact rating an integral gasket allowing for IP66 rating. Catalog logic found on page 3.

INSTALLATION

• Quick-mount adapter provides easy installation to wall or to recessed junction
  boxes (4" square junction box)
• Designed for direct j-box mount.

ELECTRICAL

• 120V-277V universal voltage 50/60Hz 0-10V dimming drivers
• 347V input is available in most wattage, 480V is available for 55W and above.
• Ambient operating temperature -40˚C to 40˚C
• Driver RoHS and IP66
• 10kV Surge Protector optional
• Drivers have greater than .90 power factor and less than 20% Total Harmonic Distortion
• Dual Driver option provides 2 drivers within luminaire but only one set of leads exiting the luminaire, where Dual Power Feed provides two drivers which can be wired independently as two sets of leads are extended from the luminaire. Both options can not be included in one same fixture.
• Dimming drivers are standard. Select CD (Customer Dimming) for the dimming wires
  to be extended outside the fixture.


CONTROLS

• Photo control, occupancy sensor and wireless available for complete on/off and
  dimming control
• Button photocontrol is suitable for 120-277V operation
• NX Distributed Intelligence™ available with in fixture wireless control module, features dimming and occupancy sensor
• Integral Battery Backup provides emergency lighting for the required 90 minute path of egress
• Micro Strike Battery Back-up units are rated for operating temperatures -20˚C to 40˚C ambient
• Battery Backup for VPW2-20L-20 and 20L- 25 is rated -20˚C to 30˚C ambient
• Please consult brand or sales representative when combining control and electrical options as some combinations may not operate as anticipated depending on your application.
• LightGRID+ available with in fixture wireless control module, features dimming and occupancy sensor.

CERTIFICATIONS

• Certified to UL 1598 and CSA 22.2#250.0-24
• IP65 rating with Strike and Microstrike optics
• IP66 and IK10 rating with Silicone Strike optics
• Emergency battery backup options are California Energy Commission (CEC) Title 20
  Compliant
• This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9) and Trade Agreements Act (FAR 52.225- 11). See Buy America(n) Solutions (link to http://www.currentlighting.com/resources/americasolutions).
• DarkSky approved with 3000K CCT or warmer
• DLC (DesignLights Consortium Qualified), Not all product variations listed in this
  document are DLC® qualified. Refer to http://www.designlights.org for the most upto-date list.

WARRANTY

• 5 year limited warranty
