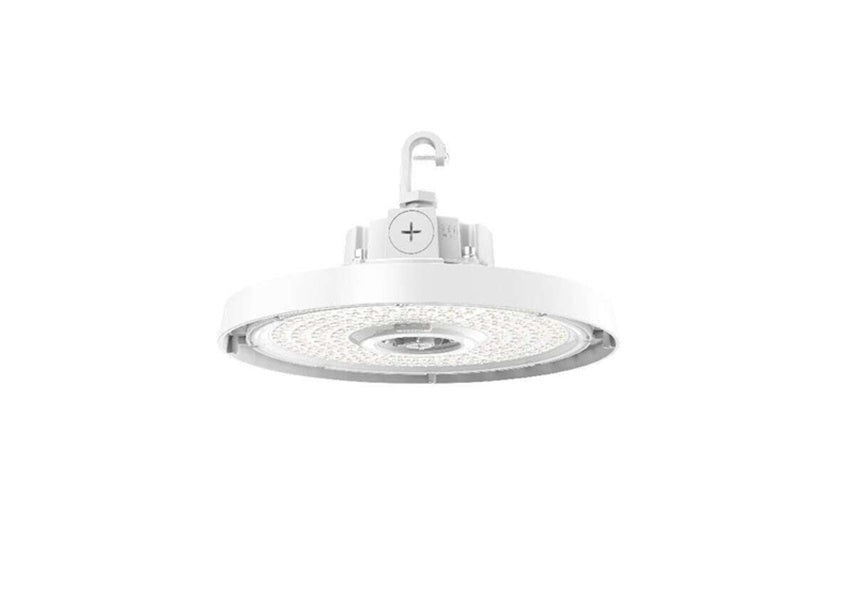

Columbia Lighting CRN2-2-LSCS-EDMV-SO-W 150/200/240W Wet Location High Bay, Lumen Switchable / CCT Switchable 3500/4000/5000K, 0-10V Dimming, 120–347V, Switchable Beam 100 Degrees /80 Degrees/60 Degrees, White

PRODUCT FAMILY SPECIFICATIONS

CONSTRUCTION

• Die cast aluminum housing with
• polycarbonate lens, providing durability for tough environments.
• Thermally separated electronic and LED heat sink design allows for longevity in
  application.
• Pre-installed 6' wet location power and dimming cords for simplified installation
• Wire guard available as accessories for enhanced durability.


INSTALLATION

• Pendant mount from 1/2" NPT hook standard
• Loop, Snap hook and wall mount bracket available as accessories
• 1/2" to 3/4" NPT converter adapter available.

ELECTRICAL

• Long-life +100,000hr LEDs at L70 at 25ºC
• Driver design life +50,000hr at 50 ºC
• Total Input Wattage
  Size 1: 100W/ 120W/ 150W
  Size 2: 150W/ 200W/ 240W
• Standard: 120–347V
• System power factor is >0.9 and THD is <20%
• Standard 6kV surge protection for demanding environments


CONTROLS

• Standard 0–10V, 10% dimming
• Field installable passive infrared (PIR) occupancy sensor provides discrete integration into the fixture maximizing sensor coverage range

CERTIFICATIONS

• All luminaries are built to UL 1598 standards, and bear appropriate cULus labels for wet locations
• IP65 rated
• IK07 rated lens, IK10 rated housing
• NSF Splash Zone 2- food equipment standard for non-food zones rated
• NEMA 250 Type 4X rated
• EMI: Title 47 CFR 15 Class A
• Ambient Operating Temperature
  Size 1: -40°C to 55°C
  Size 2: -40° C to 50°C
  For Sensor accessory: See specifications on Page 7
• DLC (DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at http://www.designlights.org


WARRANTY

• 5 year warranty
