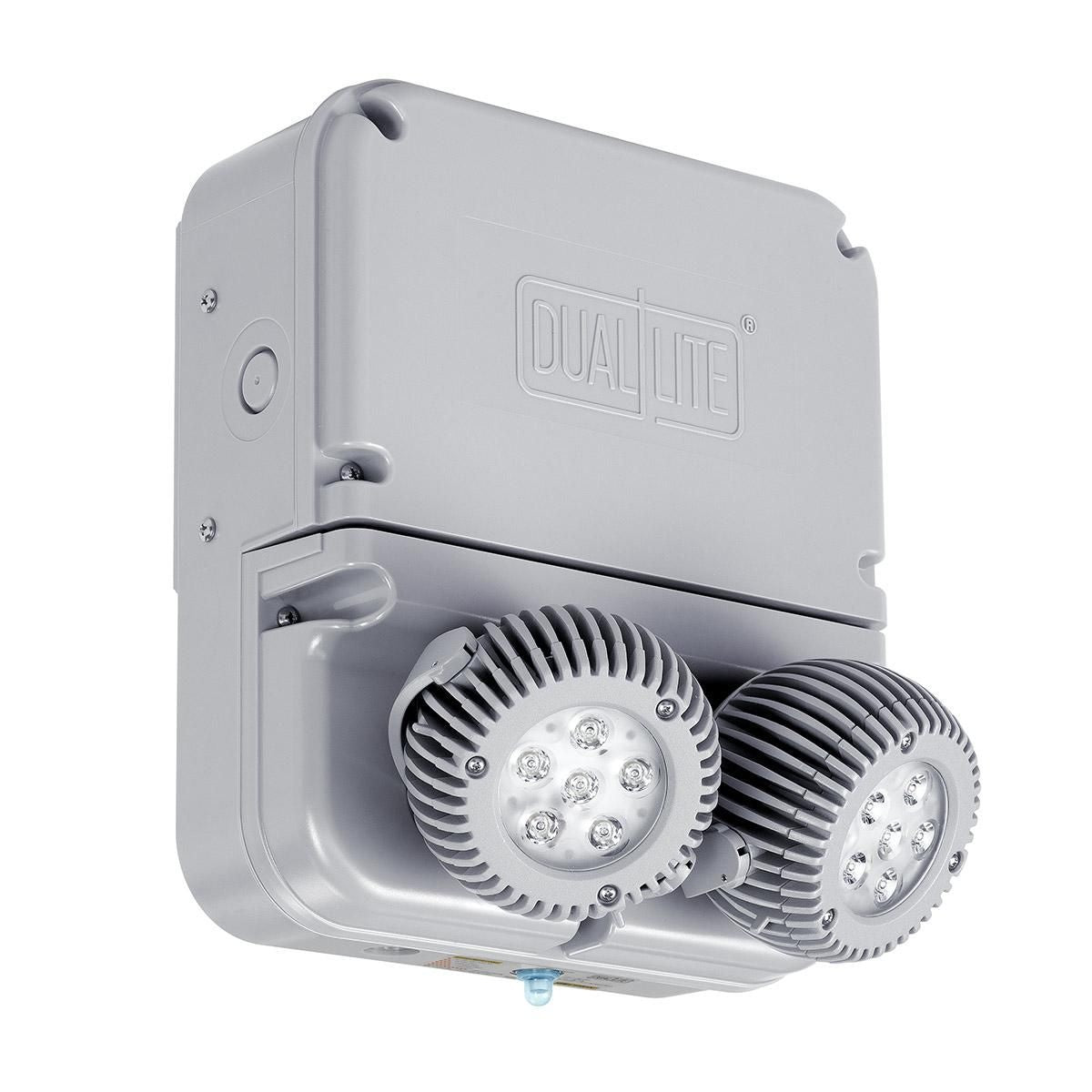

Dual Lite DYNHL12I-4X 32W High Lumen Industrial Emergency LED Light, Spectron Self-Diagnostics, 16W LED Lamps, NEMA 4X/IP66 Rated

PRODUCT FAMILY SPECIFICATIONS

APPLICATION

• Highly versatile superior lumen output, industrial application emergency lighting unit, designed to provide a minimum of 90 minutes illumination when primary power is lost.
• Includes microcontroller based 3-stage charger and Lithium Iron Phosphate (LiFePO4) battery.
• Specifically designed for demanding environments, high reliability operation in industrial settings such as high ceiling, wet location, hose-down, food processing, food storage, production facilities, chemical plants, and wastewater treatment.


CONSTRUCTION

• Flame-rated, UV stable thermoplastic housing which is fully gasketed and corrosion resistant with a gray finish.
• The DYN series housing, covers, remote housing and shield are made of polycarbonate.
• Lampheads are made of die-cast aluminum for thermal dissipation.
• LED lenses are made of polycarbonate.
• The Food Processing (FP) optioned DYN includes a clear polycarbonate shield which
  fully covers the lampheads.


INSTALLATION

• Includes a universal mounting plate which facilitates mounting to a truss or I-beam, pole, column, or wall.
• Special bracket included to ensure positive pole gripping when using bands.
• In wet or NEMA 4X applications, use UL listed watertight conduit fittings that meet
  the requirements of the UL 514B Standard for Conduit Tubing and Cable Fittings when
  using knockouts on the side or top of unit.
  *All fittings supplied by others.
• The DYN Series accepts 120 through 277VAC input at 50 or 60Hz. Not designed
  for self-diagnostic operation at 220-240VAC input.
• Universal mounting plate made of painted stamped steel.

ILLUMINATION

• Each lamphead provides 1,106 lumens for total lumen output of 2,212 lumens.
• Provides a bright and uniform illumination and is specifically designed for higher
  mounting heights above 9’.
• Coverage produced by two 8 watt (each) sealed aluminum lampheads using 6 high
  power LEDs each.
• LEDs housed in a specially designed, heat dissipating, fully adjustable lamphead which
  can be locked into position.
• Designed for full lumen output across the entire safety code required 90 minutes of
  operation to ensure maximum visibility for emergency path of egress.

COMPLIANCES

• Listed to UL924 Standard, NFPA 101, NFPA 70
• Wet Location, NEMA 4, 4X rated
• UL Sanitation Certified (including NSF standards) with FP Optio
• IP66 rated
• CEC T20 Compliant


WARRANTY

• LED Lifetime Warranty
• DYN Spectron® Model- 5 Year Full
