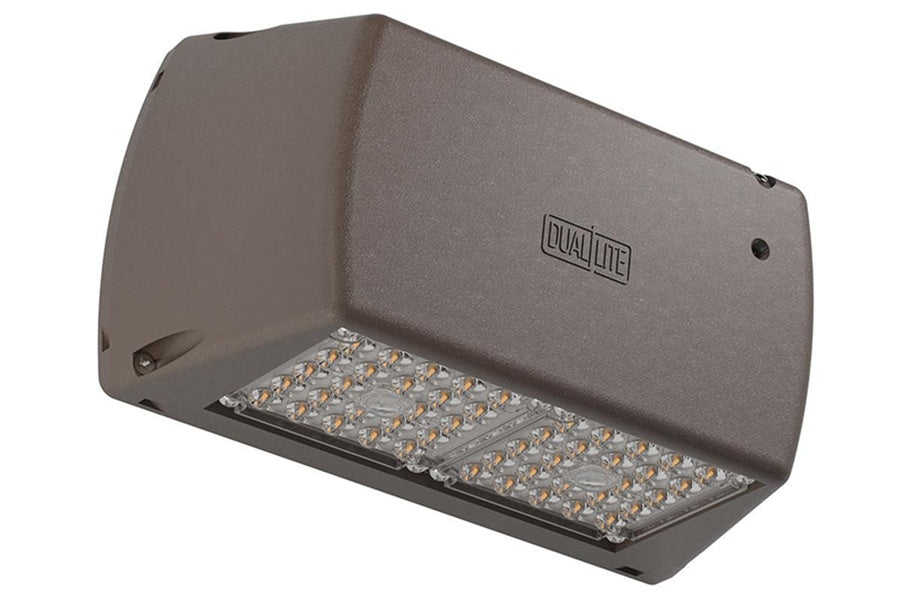

Dual Lite PGXB-HTR Architectural Emergency Wallpack with Battery Heater, Black

PRODUCT SPECIFICATIONS

APPLICATION

• PGX is an indoor/outdoor, high performance LED wallpack which offers "Normally-On" and Emergency operation in one fixture.
• Micro Strike optics maximize path of egress illumination for mounting over entrance/exit ways and perimeter walkways.
• Spectron self-testing/self-diagnostic electronics are included standard.
• A battery heater for cold temperature operation is available as an option.


CONSTRUCTION

• Durable die‑cast aluminum housing with a sleek, low‑profile design.
• Powder paint finish provides durability in outdoor environments and is available
  in dark bronze, white, black and platinum silver.
• The gently curved shape provides a modern look while reducing visual bulk.
  A full cutoff design, ensures a sleek appearance and controlled light distribution.
• Optimized thermal design ensures consistent heat dissipation for extended LED life and reliable performance.

INSTALLATION

• Die-cast aluminum backplate includes easily removable universal mounting
  knockout pattern to standard 3 1/2" or 4" octagon or square electrical box.
• A 1/2"- 1/4" NPT threaded conduit opening is provided at the top of the housing and sealed with a threaded plug.


ILLUMINATION

• Equipped with two 4000K (80 CRI) arrays providing up to 1,093 lumens. In the event 1 LED array fails, the remaining array will continue to function.
• Micro Strike optics provide an IES Type 4W distribution.
• 0-10V dimming standard for energy savings and control flexibility.
• BUG Rating: 0, 0, 1

COMPLIANCES

• UL 924 Listed
• UL 1598 Listed
• UL Wet Location Listed
• NFPA 101 Life Safety Code
• NFPA 70 National Electrical Code
• DLC (DesignLights Consortium) Listed. Please refer to the DLC website for specific product qualifications at designlights.org
• CEC Title 20 Compliant


WARRANTY

• 5 years full warranty
