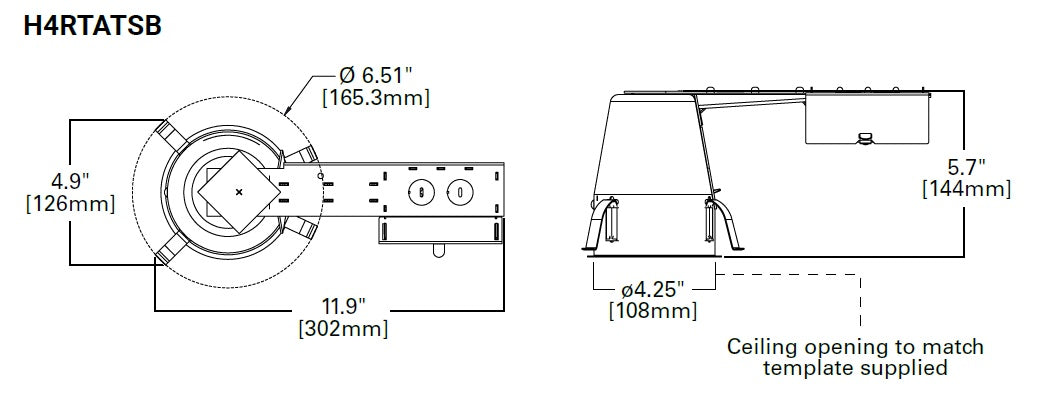

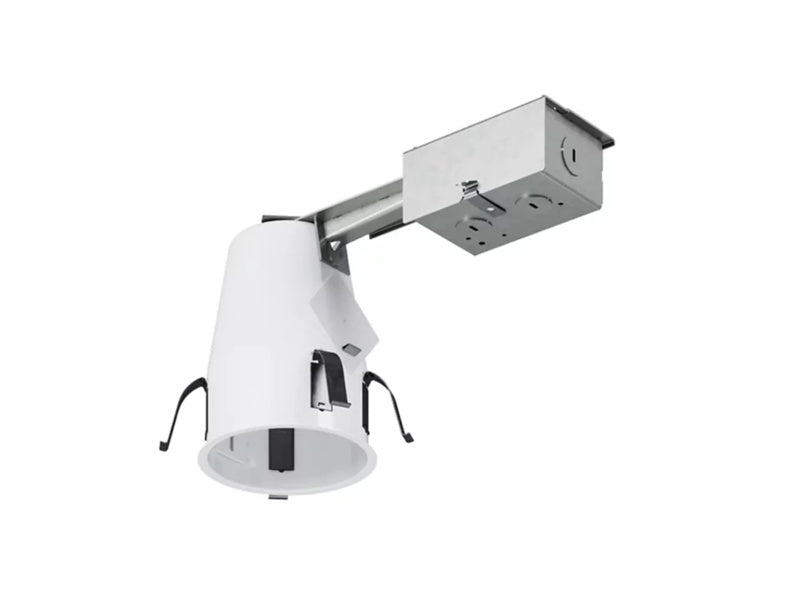

Halo Recessed H4RTATSB 4" Remodel Recessed Housing, Non-IC Rated, E26 Medium Base Socket, 120V

PRODUCT SPECIFICATIONS

Housing

• Die-formed CRS
• Precision rolled interlocking collar maintains aperture geometry for greater assurance of installation results
• Exclusive AIR-TITE gasket meets code where required; Seals between housing, and finished ceiling (without need for additional caulk)
• Non-IC Rated Housings are not designed for direct contact with insulation and can be installed in noninsulated ceilings only.
• For installation from below the finished ceiling. Integral flange secures fixture against ceiling.


Remodel Flange

• Die formed flange maintains precise whole circumference
• Integral flange secures fixture against the ceiling


Socket Plate

• Rigid construction Adjusts and locks without tools for various lamp sizes
• Socket plate and bracket may be removed when using socket supporting trims

Socket

• Porcelain E26 medium-based socket with nickel plated brass screw shell
• Snap-in springs secure socket to socket plate, and may be detached when using socket supporting trims
• Included overspray protector keeps socket clean during construction

Remodel Retention System

• Four remodel springs secure housing and accommodate 1/2" and 5/8" ceiling material

Slide-N-Side Repositioning Junction Box

• Hinged and captive door for easy access
• Seven 1/2" conduit pry-outs with true pry-out slots
• Four pry-outs with integral strain relief simplify "NM" non-metallic sheathed cable installation
• Allows wiring connections to be made outside the junction bo
• Simply insert the cable directly into the trap after connections are made
• Accommodates the following standard nonmetallic (NM) sheathed cable types for both U.S. and Canada: (US) #14/2, #14/3, #12/2, #12/3; (Canada) #14/2, #14/3, #12/2

Quick Connect Push-in Wire Nuts

• Three 4-port push-in "Quick Connect" wire nuts pre-installed
• Speeds installation and increases reliability
• Simply strip and insert supply wires
• No additional wire nuts required

Thermal Protector

• Self-resetting
• Deactivates fixture if overheating occurs due to improper lamping or misapplied insulation

Trims

• HALO Fit-All concept offers multiple trim options in a variety of design styles and functional beam distributions to control beam angle and lumen delivery in accommodating various light sources:
  LED Trims or lamps (light bulbs: LED, halogen, CFL (compact fluorescent), and incandescent)


Compliance

• Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
• Wet location listed in covered ceilings and IP56 certified with select trims
• cULus Listed 1598 luminaire
• cULus Listed damp location
• cULus Listed for wet location, covered ceiling with select trims
• cULus Listed for feed through
• cULus Listed for direct contact with insulation and combustible material*
• Certified under ASTM E283 (gasket included)
• AIR-TITE™ code compliant; Not exceeding 2.0 cfm (0.944 L/s) air leakage rate tested at a 1.57 psf (75 Pa) pressure differential
• RoHS compliant
• Options to meet Trade Agreements Act requirements
  *Not to be used in direct contact with spray foam insulation (consult NEMA LSD57-2013)

Warranty

• Five-year limited warranty,
