Halo HLC6FS1E-24P Tapered Surface Mount LED Disk Lights 6", 5-Color Field-SeleCCTable (2700-5000K), 970 lumens, White

PRODUCT FAMILY SPECIFICATIONS

Construction
• Stamped steel

Optics
• Twist-release polycarbonate lens
• Precision engineered optic provides uniform luminance from a low-profile convex lens
• Removable lens for easy install from below installation

LED
• Backlit LED technology
• 5CCT Field Selectable color temperature (2700K, 3000K, 3500K, 4000K, 5000K)
• 90 CRI is standard
• Color accuracy within 7 SDCM at the CCT endpoints, provide color accuracy and uniformity.
• Expected Life: L70 at 50,000 hours projected in accordance with TM-21

Driver
• Integral 120V 60Hz constant current driver provides virtually noise free operation.
• Continuous, flicker-free dimming from 100% to 10% with select leading or trailing edge 120V phase cut dimmers. See dimming guide.
• Dimming to 10% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use.
(Note some dimmers require a neutral in the wallbox.)
• TIPS: For optimal dimming performance, consider dimmers with low-end trim adjustment and note that some dimmers require a neutral wire in the wallbox. (See the HLC Dimming Guide and then consult dimmer manufacturer for compatibility and conditions of use.)
Electrical Junction Box Mounting
• HLC fixtures may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
• Keyhole mounting slots allow for quick installation with provided screws
• Installs from below the ceiling
• Suitable for installation in most 3-1/2" and 4" octagon and round electrical junction boxes.

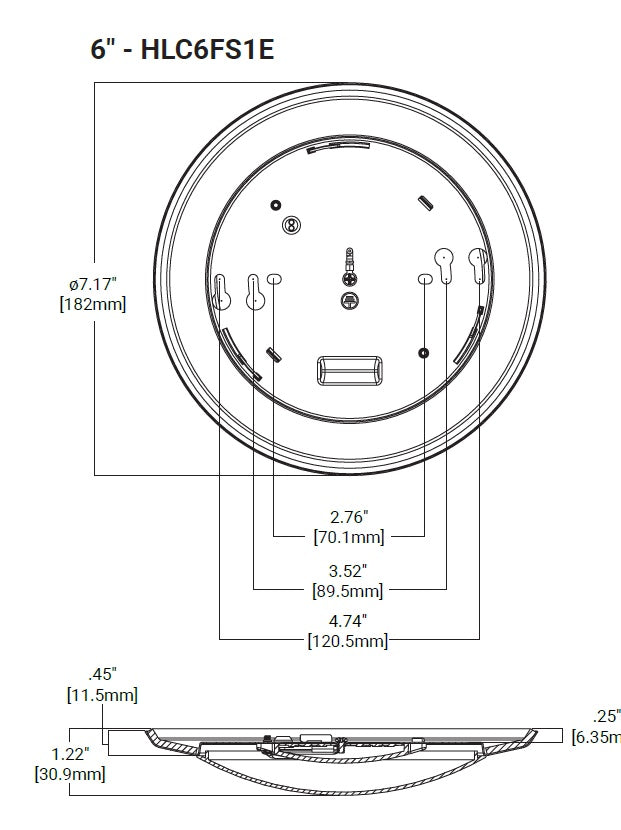

• Mounting holes at 2.76", 3.52" and 4.74" allow for mounting to most junction boxes.
• Compatible with compact (pancake) junction boxes (ensure pancake box is flush with the ceiling)
• The installer must ensure compatibility of fit, wiring and proper mounting in the electrical
junction box. This includes all applicable national and local electrical and building coded NEMA LSD 57-2013
• Reference installation instructions for complete mounting steps

Gasket
• Closed-cell gasket achieves restrictive airflow requirements without additional caulking

Compliance
• ETL certified for US and Canada
• Wet Location listed
• Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
• Airtight per ASTM-E283 (no gasket necessary)
• EMI/RFI emissions per FCC 47CFR Part 15B
• Contains no mercury or lead and RoHS compliant (1).
• Photometric testing in accordance with IES LM-79-08
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
• Can be used for State of California Title 24 high efficacy luminaire compliance (1)
• Can be used for International Energy
Conservation Code (IECC) and Washington State Energy Code high efficiency luminaire

Compliance
• ENERGY STAR® Certified luminaire - consult ENERGY STAR Certified Product List

Warranty
• Five year limited warranty
