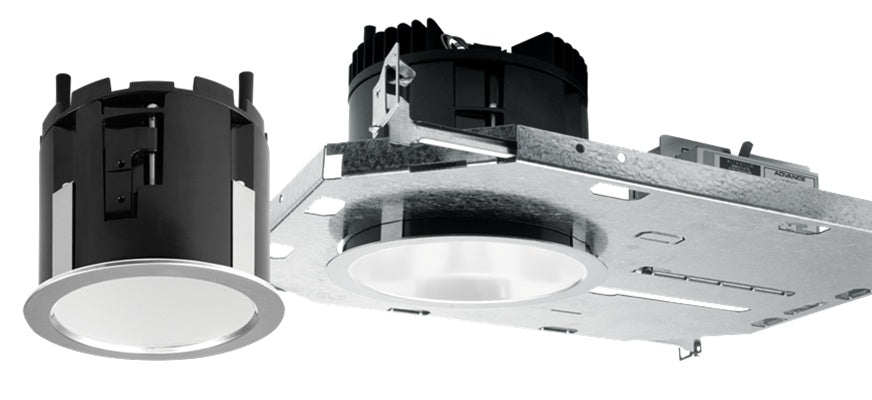

H.E. Williams 6DR-TL-L15/850-DIM-UNV-OW-OF-CS-N-F1 6" LED Downlight, 1500 Lumens, 80 CRI, 5000K, 0-10V Dim, 120-277V, Open Reflector Wide Dist, 1/2" Flange, Clear Semi-Specular Anodize, Open Pan, Fixed Pan Bracket

PRODUCT FAMILY SPECIFICATIONS

FEATURES

• Innovative TrimLock reflector retention system ensures trim remains flush with ceiling plane
• Wide range of lumen options for general illumination
• Beam angles ranging from 10º narrow to 65º wide for tailored performance
• Industry-leading efficacies as high as 134 lm/W
• New construction mounting pan, IC-rated, or pan-less remodel kit available
• Fully room-side accessible
• Die-cast trim includes flush, regressed or angled lens
• Sloped adapter accommodates vaulted ceilings
• Optional non-conductive lens for shower applications
• IP65-rated die-cast trim includes easy-to-clean flush lens
• Open reflector with nine finishes complements any interior style
• Support human-centric design with adaptive, individualized lighting using tunable white light
• IP65-rated die-cast trim includes easy-to-clean flush lens
• Low UGR meets LEED and WELL requirements
• Wireless in-fixture control solutions available
• Made Right Here® in the USA


SPECIFICATIONS

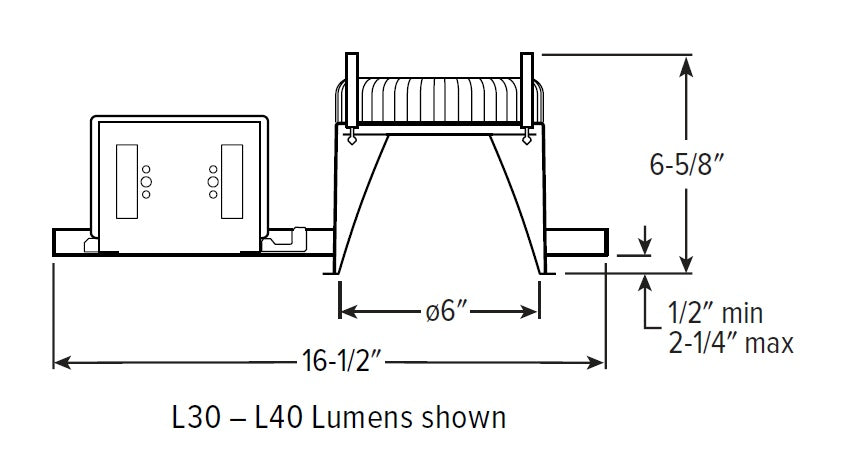

HOUSING – Die-cast aluminum trim housing and heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
TRIMLOCK – Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.
OPEN REFLECTOR – Low-iridescent anodized aluminum. Clear semi-specular finish standard.
LENSED TRIM – Die-cast aluminum frame with micro-prismatic, acrylic lens.
ELECTRICAL – High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours. Tunable White products use LEDs of multiple CCTs and may produce a perceptibly different shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
MOUNTING – Recessed 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for L60 – L120 lumen packages.

LISTINGS

• cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation.
• Suitable for wet location under covered ceiling when specified with WET/CC option.
• IC-rated for direct contact with insulation when specified with I Mounting Type.
• City of Chicago Environmental Air approved when specified with CP option.
• IP65 rated trim when specified with IP option.
• Complies with ASTM-E283 when specified with ATH option.
• RoHS compliant.
• Title 24 (JA8) compliant in select configurations, see cacertappliances.energy.ca.gov
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american


WARRANTY - 5-year limited warranty
