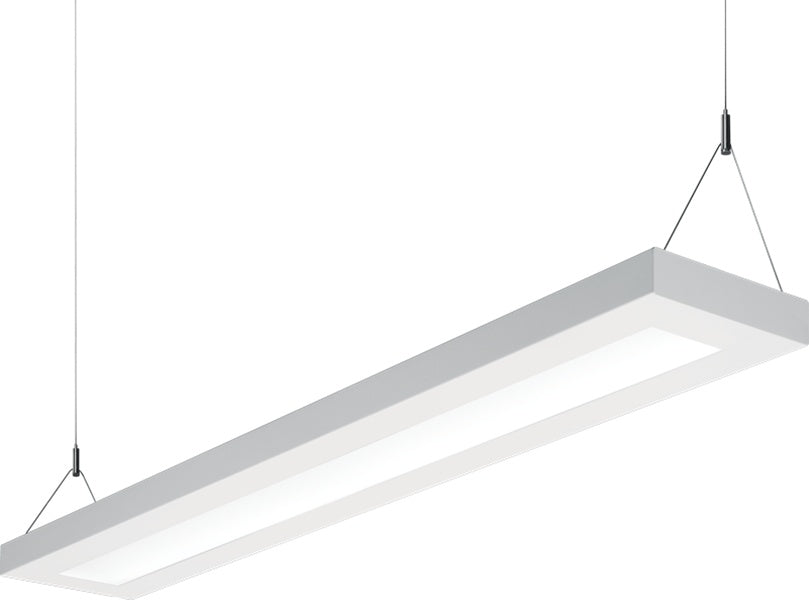

H.E. Williams SDI5-8-L16/835-S-DMA-10U/90D-ACF(Y12)/D96-S9658D/W-DIM1-UNV 8' Suspended LED Light, 1600 Lumens, 80 CRI, 3500K, Diffuse Matte Acrylic Shielding, 1 % Driver with External 0-10V Dimming Wires, 120-277V

PRODUCT FAMILY SPECIFICATIONS

HOUSING – 20-gauge die-formed C.R.S. spot welded construction.
END CAPS – 16-gauge C.R.S. with spot welded inner light stop, fastened with
hidden machine screw fastener.
SHIELDIING – Diffuse acrylic downlight with clear acrylic uplight.
REFLECTIVE SURFACES – 92% minimum average reflective white polyester powder
coat on interior components.
FINISH – Textured matte white polyester TGIC powder coat bonded to phosphatefree,
multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
ELECTRICAL – High-quality mid-power LED boards. L70 > 50,000 hours. 50/60 Hz constant current driver. Tunable White products use LEDs of multiple shade of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
MOUNTING – Suspended. 1/16″ diameter adjustable steel leveling aircraft cable
with two-point “Y” connector and mounting hardware provided. Fixtures join using (2) 8-32 machine screws and hex nuts.
LISTINGS –
cCSAus certified as luminaire suitable for dry or damp locations.
UL 924 available, see Options.
Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american
WARRANTY – 5-year limited warranty, see hew.com/warranty
