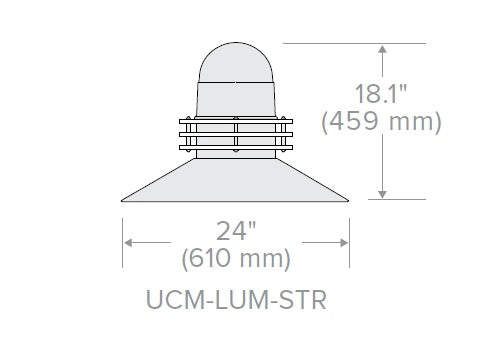

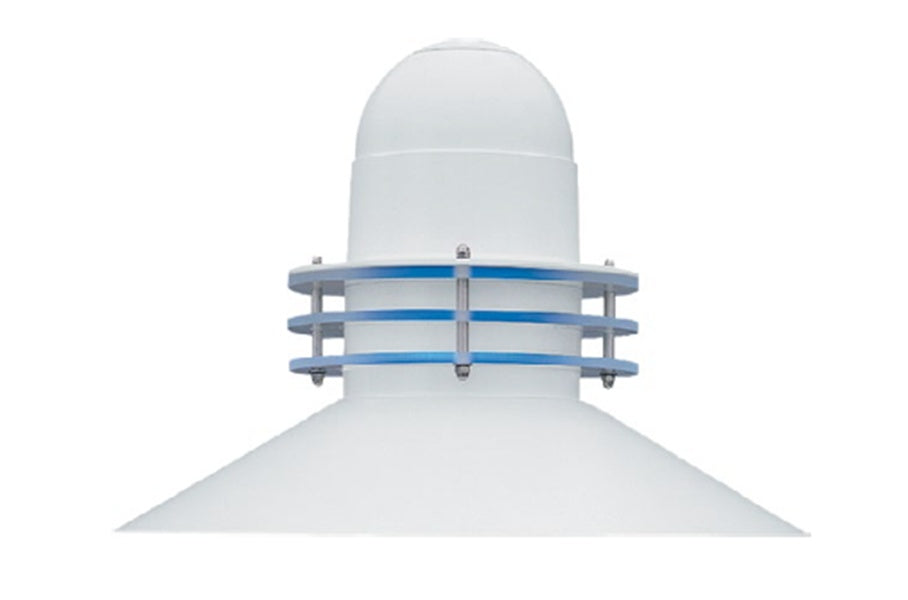

Current UCM2-LK-STR-36L-615-3K7-3-CL-DBS-SF-UNV Universe Meidum Upgrade Kit, Straight Hood, 36 LED, 615mA, 72W, 3900-9300 Lumens, 3000K, 70 CRI, Type III Distribution, Clear Lens, Single Fuse, 120-277V, Dark Bronze Gloss Smooth

PRODUCT FAMILY SPECIFICATIONS

CONSTRUCTION

• All housing components die cast aluminum 360 alloy, sealed with continuous silicone
  rubber gaskets
• Standard configurations do not require a flat lens, optional lenses are tempered glass
• All internal and external hardware is stainless steel
• Finish: fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat
• Optical bezel finish matches the luminaire housing


LED/OPTICS

• Optical cartridge system consisting of a die cast heat sink, LED engine, TIR optics,
  gasket and bezel plate
• Optics are held in place without the use of adhesives
• Molded silicone gasket ensures a weather-proofseal around each individual LED
• Features individual LED optical control based on high performance TIR optical designs
• Back light control is available on Standard and Clear Lens options except any Type 5 distribution. Back light control is not available for any distribution using a Diffused Lens


LENS

• Standard lens (CLR) IK10



INSTALLATION

• Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury

ELECTRICAL

• Luminaires have integral surge protection, UL recognized and have a surge current rating of 10,000 Amps using the industry standard 8/20uSec wave and surge rating of 372J
• Drivers are UL recognized with an inrush current maximum of <20.0 Amps maximum
  at 230VAC
• 100%-1% dimming range. Fixture will be wired for low voltage 0-10V dimming control

CONTROLS

• Photocell adapter(s) shall slip over a 4"/100mm DIA. pole with the luminaire or arm
  slipping over the adapter to add a total of 4.5"/114mm to the overall height. Adapter(s) shall be prewired, independently rotatable 360°, and have a cast access cover with an integral lens and lanyard
• Photocell adapter shall include an internal twist lock receptacle. Photocell by others

CERTIFICATIONS

• ETL listed under UL 1598 and CSA C22.2 No. 250.0-08 for wet location
• IEC 66262 Mechanical Impact Code IK10
• IDA approved, 3000K and warmer CCTs only
• IP66 rated

WARRANTY

• 5 Year Warranty
