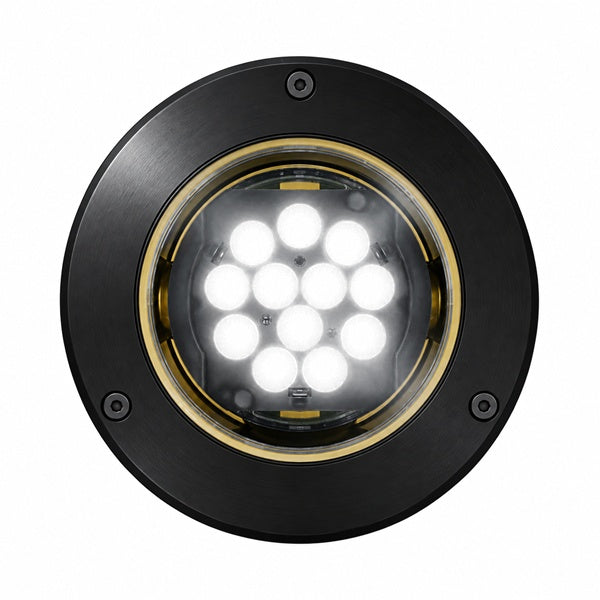

Hydrel IGF6 A LED P2 80CRI 40K MVOLT WWD 10T FLCSR 34B ZT BL 6" In-Grade LED Light, Aluminum Door, P2 Package, 80 CRI, 4000K, 120-277V, Wall Wash Distribution, 10 Degrees Tilt, Slip Resistant Lens, 3/4" NPT Bottom, 0-10V Dimming, Black

PRODUCT FAMILY SPECIFICATIONS

INTENDED USE: The IGF6 LED ingrade Series is intended to provide years of trouble free
operation for even the most severe direct burial applications. It utilizes the Hydrel proprietary "Flow-Thru" modular design to provide superior water ingress protection, fast and simple installation, and easy replace LED and driver modules if needed in future years for both maintenance and product efficiency gains. This product is ideal for all uplighting applications up to 2,414 lumens where a small footprint ingrade is desired.

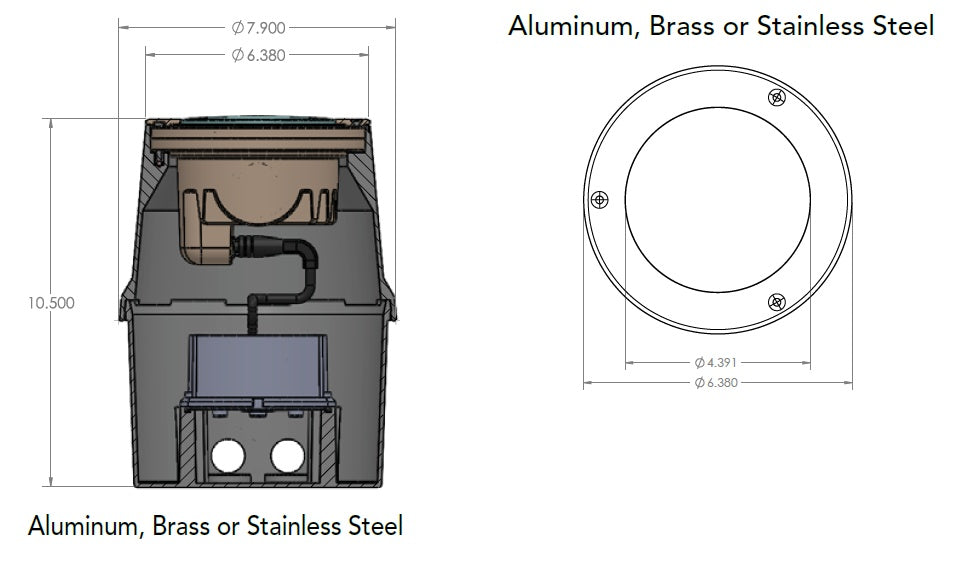

DOOR MATERIAL: Aluminum Door: Aluminum die cast material,alloy 380 with clear coat
standard. Available with optional painted finish. Brass Door: Brushed, corrosion resistant, alloy 385 brass material. Stainless Steel Door: Brushed, corrosion resistant, alloy 304 stainless steel material.

ROUGH-IN SECTION: The robust polymer Rough-In section is molded from a U.V. stabilized
material that is both impact and corrosion resistant for all types of environments. The rough-in utilizes a integral junction box to support easy access and initial installation.

CONDUIT ENTRIES: 34B 3/4" NPT Bottom (includes 2 3/4" bottom and 4 3/4" side, two on each side 180° apart) 34S 3/4" NPT Side (includes 4 3/4" side, two on each side 180°

FINISHING SECTION: The finishing section includes a standard die cast aluminum face plate with a corrosion resistant finish. Upgaded face plates are available in highly corrosion resistant stainless steel and brass with brushed finishes. Oversized trim face plate to trim out the finished installation hole for tile and other surface materials.

LED MODULE: The LED module utilizes a highly corrosive resistant die cast brass housing.
The module accomplishes a dual purpose of water ingress and thermal management to
protect the critical LED components and ensure years of serviceable life. Double sealed from the environment utilizing a proprietary encapsulation process. Moisture blocking fitting and silicone seals are trademark to Hydrel quality.

OPTICS: 7DEG, 15DEG, 30DEG, 60DEG, 90DEG Wall Wash, 30VX70H and 70VX30H

VOLTAGE: MVOLT 120-277 Volt 50-60HZ

LENS: Tempered Borosilicate Glass

LIGHT ENGINE: The light engine includes the highest output LEDs available coupled with a
precision optic and light shaping films to provide the most efficient beams, delivering light onto the intended surface. All within 3 MacAdam ellipses.

POWER MODULE: The LED driver is fully encapsulated within the junction box cover housing allowing for lower profile luminaire. The thermally conductive epoxy material provides not only superior thermal dissipation of the driver for optimum operation but also the highest level of water ingress protection for this critical component.

ELECTRICAL: MVOLT (120-277) 50/60 Hz LED power supply. Class 2 electronic driver has a
power factor >90%, THD <20%, and has an expected life of 100,000 hours with <1% failure rate.
6 kv Surge protection meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).

LISTING: cCSAus, suitable for wet locations, laboratory tests conducted by CSA to UL Standard
UL-1598 and UL-8750.

GOVERNMENT PROCUREMENT:
BAA -- Buy American Act: This product is available in a version that qualifies as a domestic end
product under the Buy American Act as implemented in the FAR and DFARS.
BABA -- Build America Buy America: This product is available in a version that qualifies as
produced in the United States under the definitions of the Build America, Buy America Act,
as implemented by 2 C.F.R. Part 184 and other agency implementing regulations, including
Department of Transportation regulations.
Please refer to www.acuitybrands.com/resources/buy-american for additional information.

WARRANTY: 5-year limited warranty.
