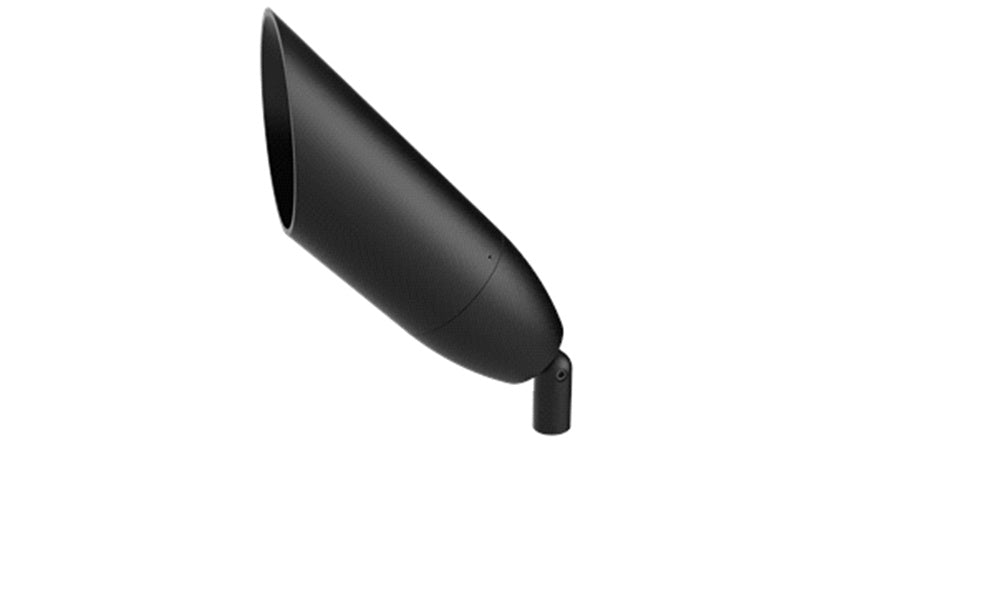

Hydrel PALM A P1 80CRI 30K 120 40DEG FLC KM C3 DBL Aluminum Landscape LED Light, P1 Performance Package, 80 CRI, 3000K, 120V, 40 Degree Distribution, Flat Clear Lens, Knuckle Mounting, 45 Degrees Angel Cut, Designer Black Smooth

PRODUCT FAMILY SPECIFICATIONS

MATERIAL: Body, caps and knuckle machined from 6061-T6 Aluminum. BR - machined from 360 brass.

LIGHT SOURCE: Proprietary high output LEDs. Units have near constant light output when supplied with 11VAC-14VAC to combat voltage drop. All within 3 MacAdam ellipses. Available with an LED light engine supporting a high color rendering of 90CRI. Also available in 80CRI.

VOLTAGE: 12 Volt AC. 120 Volt AC.

DISTRIBUTION: Available in 15DEG, 20DEG, 25DEG, 30DEG, 35DEG, 40DEG, 45DEG, 50DEG, 55DEG

LENS: FLC - Lens cut from heat strengthened borosilicate glass for superior clarity and strength. WSL - Molded heat strengthened borosilicate glass for superior clarity and strength, where the glass and the top of the door are flush to allow water to shed off the fixture.

MOUNTING: Knuckle is 1/2" NPSM, mounts to 7/8" thru hole. KM option allows to tilt the fixture up to 180°. 350R option allows to tilt the fixture up to 180° and rotate up to 350°. Supplied standard with 48" of 18AWG connection wire.

POWER SUPPLY: Remote 12VAC transformer purchased separately. For 120VAC driver is integral.
12VAC dimmable using a remote magnectic transfomer. 120VAC dimmable using a standard Triac dimming switch/systems.

FINISH: Super durable Polyester TGIC powder coat finish (standard). Optional Zinc undercoat for harsh environments.

FEATURES: Tapered "Sure Lock" knuckle seat for innite aiming and an unparalleled locking
ability. Any combination of up to 2 lens accessories/color filter/shielding can be specied for
cap style and are held securely by a removable stainless steel clip ring. 350° rotational knuckle also available.

LISTING: cCSAus, Wet Location. Laboratory tests conducted by CSA to UL Standards
UL-1598, UL-8750 and UL-1838. IP66 Rated.

GOVERNMENT PROCUREMENT
BAA -- Buy American Act: This product is available in a version that qualifies as a domestic
end product under the Buy American Act as implemented in the FAR and DFARS.
BABA -- Build America Buy America: This product is available in a version that qualifies as
produced in the United States under the definitions of the Build America, Buy America Act,
as implemented by 2 C.F.R. Part 184 and other agency implementing regulations, including
Department of Transportation regulations.
Please refer to www.acuitybrands.com/resources/buy-american for additional information.

WARRANTY: 5-year limited warranty.
