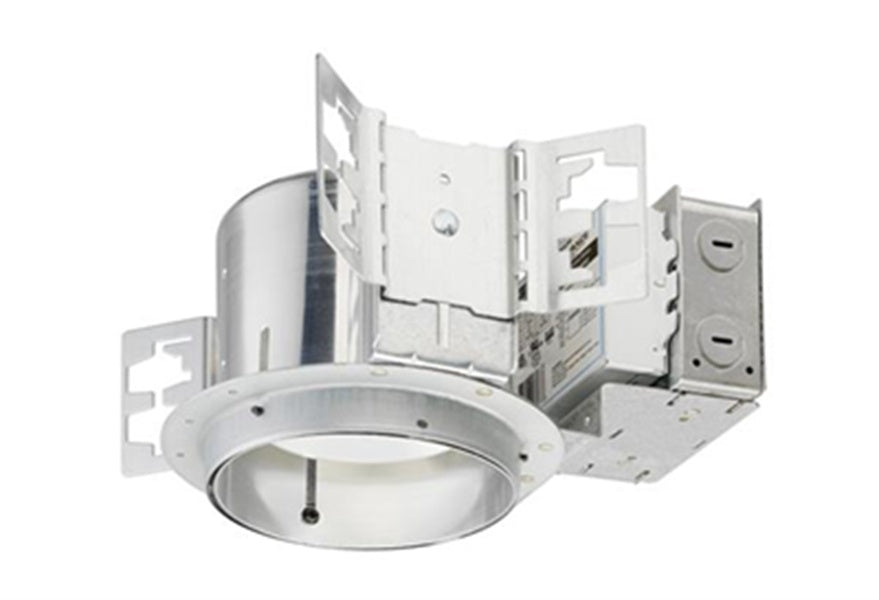

Juno Recessed Lighting TC20LED G4 09LM 27K 90CRI MVOLT ECOD 5" TC-Rated LED Housing 900 Lumens, 2700K Color Temperature, Lutron Hi-Lume Ecosystem Driver

PRODUCT FAMILY SPECIFICATIONS

LED Light Engine

• LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED
• Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
• LEDs are binned within a 3-Step MacAdam Ellipse
• 2700K, 3000K, 3500K or 4000K color temperatures available
• 90 CRI minimum.


Optical System

• Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance
• Deep regression of lens produces a low glare, efficient system that can produce over 900 lumens with select trims using less than 17W (Nominal input wattage with universal voltage driver under stable operating
  conditions).
• Wide flood (>70°) distribution shipped as standard with optional optic accessories
  available and sold separately.


Aesthetic Trim Selections

• Compatible with wide selection of existing Juno trims
• Shadow free, knife edge design blends seamlessly into ceiling.

LED Driver

• Universal voltage drivers that accommodate input voltage from 120-277 volts AC at 50/60Hz are available and dimmable with the use of most 0-10V dimmers
• Power factor > 0.9 at 120V input
• Optional Lutron Hi-Lume A-Series driver accommodates 120-277 volts AC at 50/60Hz
• Mounted between the j-box and housing for easy access and cool operation
• For a list of compatible dimmers, see JUNOTCLED-DIM.


Emergency Battery Option

• Battery factory assembled to housing with remote mounted test switch included
• Drives LED array for 90 minutes to meet Life Safety Code (NFPA-LSC), National Electrical Code (NEC) and UL requirements
• Provides 50% light output in emergency mode.


Life Rated for 50,000 hours at 70% lumen maintenance.

Labels

• UL listed for U.S. and Canada through-branch wiring, damp locations
• Union made
• UL and cUL listed.
