PRODUCT DESCRIPTION

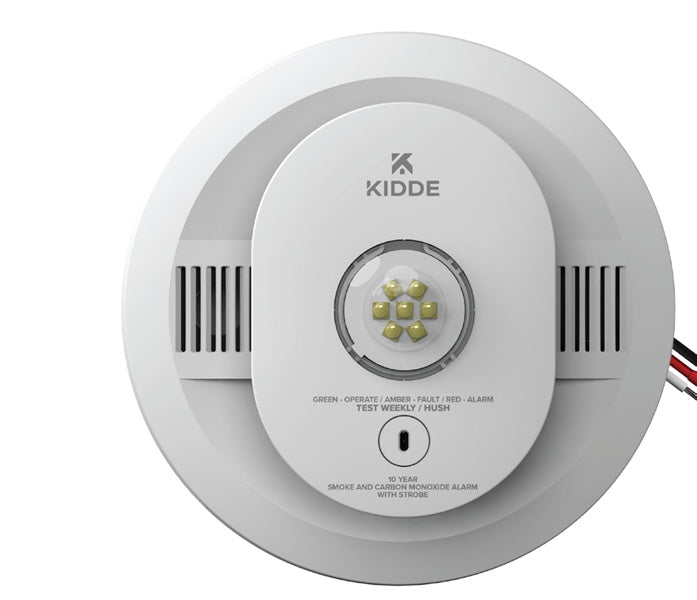

When you're on the job, there's no room for uncertainty. Built for pros, the FireX Strobe Combination Smoke + Carbon Monoxide Alarm (model CUAC10LEDFEX) delivers dependable, code-compliant detection — backed by North America’s #1 home fire safety brand.*
This advanced dual-sensor alarm meets UL 217 10th Edition and UL 2034 5th Edition standards. You'll also find key features both you and your customers will appreciate, like a bright LED strobe, sealed 10-year lithium backup battery,1 self-testing capability, event memory and universal mounting for streamlined installs.
PRODUCT FEATURES AND BENEFITS
- Faster Detection2 -- Advanced smoke chamber design for quicker, more reliable alerts
- Reduced Nuisance Alarms -- Intelligent algorithms help distinguish real threats from false alarms
- Fire Event Locator Memory -- Signals recent event with LED flash + audible chirp every 15 seconds
- Self-Testing Diagnostics -- Monitors key functions for consistent, lasting performance
- Heat & Humidity Protection -- Conformal coating protects against oxidation, corrosion and environmental conditions
- 5-Inch Universal Mounting Bracket -- Streamlines installation and replacement
- Preinstalled Dust Cover -- Rigid plastic cover shields alarm from construction dust and debris
- Durable, Fire-Resistant Housing -- Built-to-last with screw-secured plastic construction that resists yellowing and aging
- 177 Candela Strobe -- High-intensity visual warning meets ADA visibility requirements (In accordance with ADAS 215.1.).
| Alarm Indications | Smoke Alarm: Temporal-3, ≥85 dB @10 ft, strobe flash once every second. |
| Red LED in sync with alarm (initiating alarm(s) only) | |
| Amber LED = Fault / Error / EOL / Low Battery | |
| Green = Power | |
| Event Recall: 1 Red LED blink for smoke, 2 Red LED blinks for CO, every 15 sec (24 hrs.) | |
| Clean Me: 1 blink + 3 chirps (dust) | |
| CO Alarm: 4 beeps + pause, repeat, strobe flash once every second. | |
| Power & Battery | Primary: 120V AC, 60 Hz, 2.8A max |
| Backup: 10-Year Sealed Lithium Battery | |
| Maintenance-free (no replacement parts) | |
| UL 217 + UL 2034 endurance certified | |
| Functional Features | Test/Hush Button (simulates smoke + CO) |
| Hush™ (8 min) | |
| Alarm Auto Reset After Hushing | |
| Tamper-Resistant AC Quick Connector | |
| Compliance & Listings | ETL Listed; UL 217, 10th Edition; UL 2034, 5th Edition; |
| UL 1638, 6th Edition | |
| NFPA 72 (2025) | |
| NFPA 101 | |
| ICC/IBC aligned | |
| CSFM Listed | |
| Meets HUD/FHA standards | |
| Architectural / Engineering | Housing: Flame-retardant thermoplastic (UL 94) |
| 3 LED indicators + strobe | |
| ≥85 dB | |
| Meets UL 217 10th + UL 2034, NFPA 72 (2025), NFPA 101, FHA, HUD | |
| Technical | Model: CUAC10LEDFEX |
| Sensors: Photoelectric + Electrochemical CO | |
| Temp: 40–100 °F | |
| Humidity: 10 to 95% relative humidity (RH), | |
| non-condensing | |

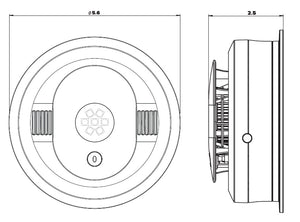

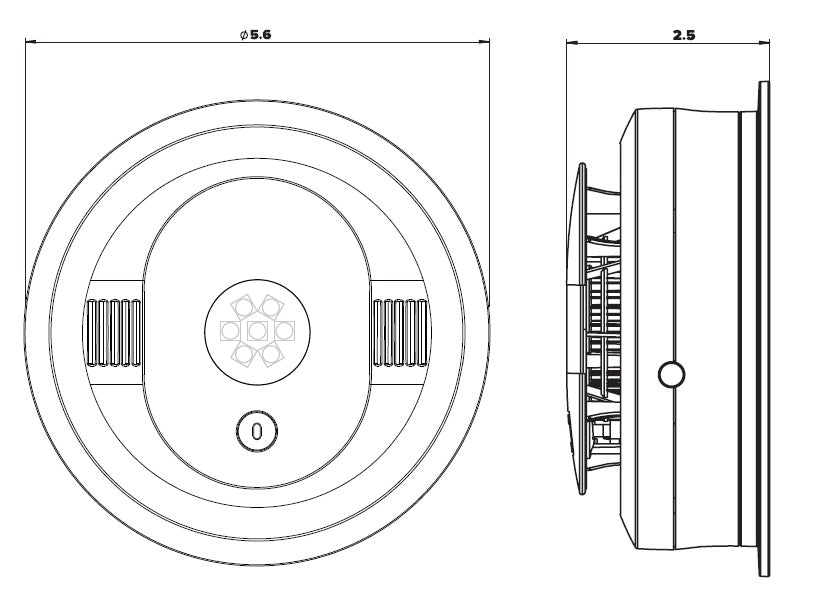

| Dimensions: 5.67" box / 5" out | |
| Weight: ~1.0 lb | |
| Wiring: Quick-connect harness | |
| Interconnect: Up to 24 Kidde devices | |
| Warranty | 10-Year Limited (includes sealed battery) |
