PRODUCT DESCRIPTION

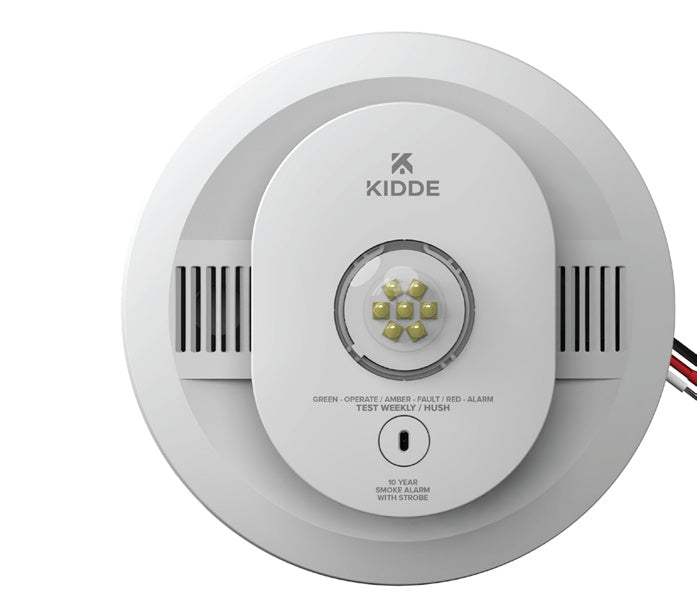

When you're on the job, there's no room for uncertainty. Built for pros, the FireX Strobe Smoke Alarm (model SMAC10LEDFEX) delivers dependable, code-compliant detection -- backed by North America’s #1 home fire safety brand.* (Based on total household installations as of December 2023. 1 10-year limited warranty (battery included). Constant exposures to high or low temperatures or high humidity may reduce battery life.)
This advanced photoelectric sensor alarm meets UL 217 10th Edition standards. You'll also find key features both you and your customers will appreciate, like a bright LED strobe, sealed 10-year lithium backup battery,1 self-testing capability, event memory and universal mounting for streamlined installs.
PRODUCT FEATURES AND BENEFITS
- Faster Detection -- Advanced smoke chamber design for quicker, more reliable alerts
- Reduced Nuisance Alarms -- Intelligent algorithms help distinguish real threats from false alarms
- Fire Event Locator Memory -- Signals recent event with LED flash + audible chirp every 15 seconds
- Self-Testing Diagnostics -- Monitors key functions for consistent, lasting performance
- Heat & Humidity Protection -- Conformal coating protects against oxidation, corrosion and environmental conditions
- 5-Inch Universal Mounting Bracket -- Streamlines installation and replacement
- Preinstalled Dust Cover -- Rigid plastic cover shields alarm from construction dust and debris
- Durable, Fire-Resistant Housing -- Built-to-last with screw-secured plastic construction that resists yellowing and aging
- 177 Candela Strobe -- High-intensity visual warning meets ADA visibility requirements (In accordance with ADAS 215.1.).
| Alarm Indications | Smoke Alarm: Temporal-3, ≥85 dB @10 ft, strobe flash once every second. |
| Red LED in sync with alarm (initiating alarm(s) only) | |
| Amber LED = Fault / Error / EOL / Low Battery | |
| Green = Power | |
| Event Recall: 1 Red LED blink for smoke, 2 Red LED blinks for CO, every 15 sec (24 hrs.) | |
| Clean Me: 1 blink + 3 chirps (dust) | |
| Power & Battery | Primary: 120V AC, 60 Hz, 2.8A max |
| Backup: 10-Year Sealed Lithium Battery | |
| Maintenance-free (no replacement parts) | |
| UL 217 + UL 2034 endurance certified | |
| Functional Features | Test/Hush Button (simulates smoke + CO) |
| Hush™ (8 min) | |
| Alarm Auto Reset After Hushing | |
| Tamper-Resistant AC Quick Connector | |
| Compliance & Listings | ETL Listed; UL 217, 10th Edition; UL 2034, 5th Edition; |
| UL 1638, 6th Edition | |
| NFPA 72 (2025) | |
| NFPA 101 | |
| ICC/IBC aligned | |
| CSFM Listed | |
| Meets HUD/FHA standards | |
| Architectural / Engineering | Housing: Flame-retardant thermoplastic (UL 94) |
| 3 LED indicators + strobe | |
| ≥85 dB | |
| Meets UL 217 10th + UL 2034, NFPA 72 (2025), NFPA 101, FHA, HUD | |
| Technical | Model: SMAC10LEDFEX |
| Sensors: Photoelectric | |
| Temp: 40–100 °F | |
| Humidity: 10 to 95% relative humidity (RH), | |
| non-condensing | |
| Dimensions: 5.67" box / 5" out | |
| Weight: ~1.0 lb | |
| Wiring: Quick-connect harness | |
| Interconnect: Up to 24 Kidde devices | |
| Warranty | 10-Year Limited (includes sealed battery) |
