Lithonia LSIXS 4FT ALO3 SWW7 6" x 4Ft Six Switcable Linear Lay-In LED Troffer, Switchable 3000/4000/5000 Lumens, 3500K / 4000K / 5000K, 80 CRI, 120-277V

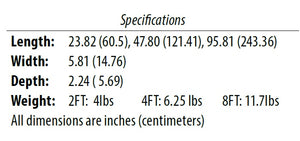

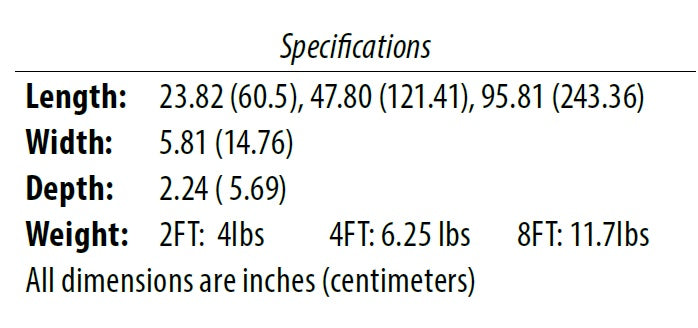

PRODUCT FAMILY SPECIFICATIONS

INTENDED USE

Lithonia SIX has a nominal 6" wide housing with a 4" wide aperture, available in 2FT, 4FT, and 8FT discrete lengths. LSIX provides performance, configurability, value and style. LSIX
is the ideal choice for the majority of commercial applications where it aligns with modern design trends, easier to install, and is environmentally responsible. North American manufacturing allows for short lead-times. The slim profile of the luminaire, coupled with energy-saving LED technology make LSIX an ideal choice for renovation or new construction. The LSIX recessed linear lay-in offers a high-quality, costeffective LED lighting solution for schools, offices, retail, healthcare facilities and other commercial spaces.

CONSTRUCTION

Built on a direct lit platform, the Lithonia SIX was designed for durability, depth
and elegance. LSIX has a nominal 6” wide housing with a 4” wide aperture, available in 2FT, 4FT and 8FT discrete lengths. The Flat frame option features a 0.6" regress to provide physical depth.
LSIX has a low-profile design to provide increased installation flexibility in restricted plenum spaces. The .66mm thick back-plate includes integral T-bar clips for installation into 9/16" and 15/16" T-grid ceilings with no additional components.
Integrated Sensor (nLight® Wired Networking): This sensor is nLight-enabled, meaning it has the ability to communicate over an nLight network. When wired, using CAT-5 cabling, with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software.
Integrated Smart Sensor (nLight Air Wireless Platform): The RES7 sensor is nLight AIR enabled, meaning it has the ability to communicate over the wireless nLight control platform. It is available with an automatic dimming photocell, and either a digital PIR or a microphonics (PDT) dual technology occupancy sensor. It pairs to other luminaires and wall switches through our mobile app, CLAIRITY+, which allows for simple sensor adjustment.

INSTALLATION

With a depth of only 2.1", LSIX makes for an easy installation, especially in restrictive
plenum applications. LSIX fits into standard 15/16" and narrow 9/16" T-grid ceiling systems. Suitable for damp location.

ELECTRICAL

Long-life LED's, coupled with high-efficiency drivers provide superior quality of light
and an extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000). 0-10 volt dimming driver, dims to 1%.
Lumen and Color Switching: Integrated lumen and color switching module is easily accessible and mounted on the driver box on the back of the fixture. Simply adjust the toggle switch for low, medium, and high lumen and color settings.

LISTINGS

CSA certified to meet US and Canadian standards. Damp location listed. IC rated. IP5X
rated. Tested in accordance with ISO 14644-14; suitable for ISO Class 5 -9 positive and negative pressure clean rooms. Rated for NSF/ANSI Standard 2 – Light Fixture for Splash Zone and Non Food Zone.
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified.
Pleasecheck the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.

GOVERNMENT PROCUREMENT

BAA -- Product with the BAA option qualifies as a domestic end
product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.

WARRANTY

5-year limited warranty
