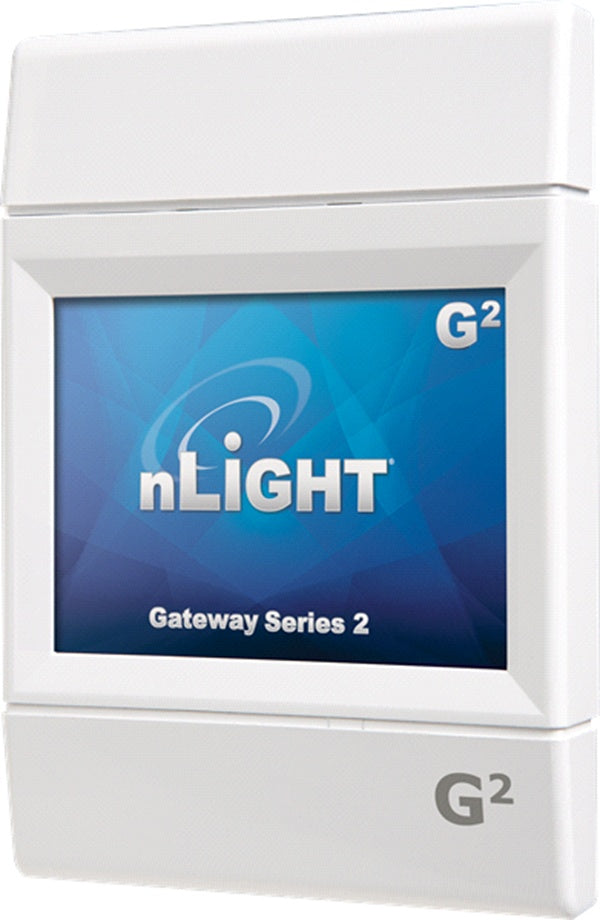

nLight NGWY2 GFX Eclypse Touchscreen

PRODUCT DESCRIPTION

The nLight Eclypse system controller connects an nLight® lighting network to support connectivity and management over an IP network, control and device setting adjustment, integration with building management, integration with demand response, and more.

PRODUCT FEATURES

• Communicates over IP, allowing the system controller and connected lighting controls devices to be accessed and configured across a local area network
• Each system controller supports up to 750 nLight and nLight AIR devices. Additional controllers can connect and scale a system of lighting controls to a maximum of 20,000 device
• BACnet Testing Laboratories (BTL) listed as a BACnet Building Controller (B-BC
• Can be discovered and managed through free SensorView software and through an onboard web GUI
• Provides time-of-day and astronomical time clock capabilities for scheduled lighting control events
• Manages forwarding of global control channels and system profiles to affect devices on multiple controllers at the same time
• Enhanced security through toggleable HTTP or HTTPS connections, a FIPS 140-2, Level 1 compliant security interface, RADIUS Server capabilities, and more
• Optional demand response client allows activation of configurable load shed dimming levels by utility DRAS through OpenADR 2.0a
