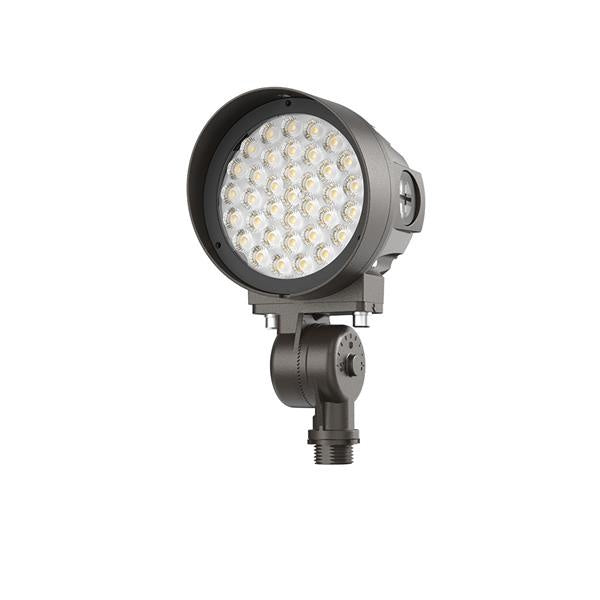

Lithonia OLB ALO SWW2 UVOLT PE DDB Outdoor LED Bullet, Adjustable light output, Switchable CCT 3000K/4000K/5000K, 120-347V, Photocell, Dark Bronze

PRODUCT SPECIFICATIONS

INTENDED USE:
The OLB floodlight is designed to provide a cost effective, energy-efficient solution for a
variety of applications with up to 1200 lumens. OLB is well suited for general illumination of
signage, flagpoles, yards, walkways, landscaping, and other floodlighting applications.

CONSTRUCTION:
Die cast aluminum housing with dark bronze powder paint finish for lasting durability.

OPTICS:
Optics are engineered for superior field-to-beam ratios, uniformity and spacing. Equipped
with both 5X5 (50°) flood optics for illuminating larger objects and 3X3 (20°) spot optics for
illuminating targets up to 50 feet away.

ELECTRICAL:
OLB features adjustable low, medium and high lumen output. Switchable CCT selections
include 3000K (warm), 4000K (cool) or 5000K (daylight) at 80CRI and a selectable dusk
to dawn photocell that automatically turns the fixture on in the evening and off the next
morning. OLB luminaries operate at 120-347V (UVOLT). Adjustable lumen output is achieved
with 0-10V continuous dimming capable drivers, ensuring system power factor >90% and
THD <20%.

INSTALLATION:
The OLB ships standard with a 1/2" NPS threaded knuckle. Each floodlight includes a round
electrical cover mounting plate and ground stake.

LISTINGS:
CSA certified to US and Canadian safety standards. IP66 Rated and suitable for use in -40°C
minimum ambient. DesignLights Consortium® (DLC) qualified product. Only 3X3 (20°)
optical distribution is qualified by DLC. Please check the DLC Qualified Products List a www.
designlights.org/QPL to confirm which versions are qualified.

WARRANTY:
5-year limited warranty.
