NeoRay S124DIP-C795D365U835-C4JB4F0-1B2-UDD-F1-W-WPS 4" LED Direct & Indirect Suspended, Standard Perform, 795 Lm/ft Direct, 365 Lm/ft Indirect, 80 CRI, 3500K, 4ft Aircraft Cable, J-Box, White Hardware, 4' Pattern Length, Single Circuit

PRODUCT FAMILY SPECIFICATIONS

Domestic Preference

Only product configurations with these prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or the Build America Buy America Act (BABA). BABA is the minimum Government compliance requirement for the Build America Buy America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual
Government Agencies may have more stringent compliance standards. Please refer to the DOMESTIC PREFERENCES  website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.

Serviceability

• Snap-in lens allows easy access to optical cavity and light engine.
• Removable modular light engine tray with quick disconnect wire-harness for ease of installation and maintenance over the life of the luminaire


Construction

• Precision cut housing extruded from 6063 aluminum
• Welded end-caps ensure a robust and clean construction

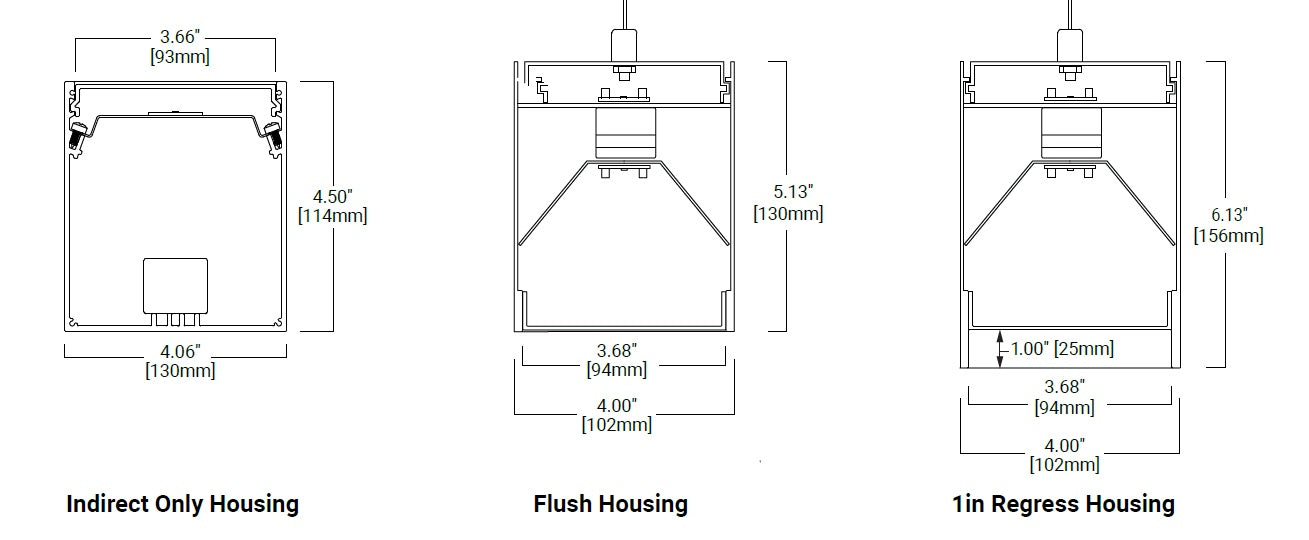

• Flush and 1in Regress Housing options available


Individuals, Runs, Patterns

• Fully luminous individual luminaires, straight runs, or custom patterns
• Patterns constructed using precision mitered housing and lens components
• Extrusions are welded to ensure a precise and robust housing
• Specify individual luminaire, linear run, or total custom pattern lengths in xft/xin increments

• Minimum fixture length is 2ft; minimum fixture length is 3ft for Direct + Indirect luminaire
• All lengths are nominal lengths and do not include end caps; reference drawings for total lengths.
• 8ft Max Section Length used on straight runs and patterns; use 8ft Max Section Length to limit max individual, run, and pattern section lengths to 8ft


Output

• Specify Custom Lumen Output to the nearest 10Lm/ft
• Available in Static 2700K, 3000K, 3500K, 4000K, 5000K
• CRI ≥80CRI or ≥90CRI
• Nominal performance is based on 3500K 80CRI with Flush Frosted Lens and White Housing; reference Lumen Adjustment Factors table for more detail.
• Extrapolated LED lifetime per TM-21:
  Greater than L90 at 61,000 hrs
  L70 exceeding 100,000 hrs
• Available in 120-277V, 347V
• VividTune Tunable White available in Dynamic 2600K-6500K or 3000K-5000K; reference VividTune section for additional details
• BioUp Melanopic Lighting available in Static 3500K, 4000K, 5000K or Dynamic 2700K-5000K
• BioUp CRI ranges from >80CRI to 96CRI
• Reference BioUp section for additional details including Melanopic Daylight Efficacy Ratio (MDER)


Optics

• Patented solution provides consistent illumination with no pixelation at the ends of individual luminaires, straight runs, and patterns.
• Direct Optics
  F (or FLL): Frosted lens (Diffuse) with Lambertian distribution
  D: Frosted 1in Drop Lens with Wide Lambertian distribution
  A: Frosted lens with Asymmetric distribution
  VL: Premium straight blade Louver with metal construction and Frosted lens. 1in regress with 1in spacing provides superior low glare 45° cutoff
• Indirect Optics
  Open No Lens: Open top with Lambertian distribution provides lowest cost and highest efficacy option
  1: Frosted lens (Diffuse) with Lambertian distribution provides dust cover option when top of the luminaire is viewable during normal use
  4: Batwing optic with ultra wide 110° distribution for maximizing ceiling uniformity and on-center spacing
  HOB: Shielded batwing optic with ultra wide half batwing distribution


Emergency Options

• Battery operates entire downlight portion of individual luminaires < 7ft
• Battery operates 4ft sections of longer luminaires, runs, and patterns
• Reference Battery Location section for additional details
• UL924 Bypass Relay Device available as emergency generator transfer option


WaveLinx with Emergency Circuit

• WaveLinx combined with emergency circuit require WaveLinx with UL924 bypass control (WEM) Emergency option.
• For UL924 compliance, WaveLinx with UL924 bypass control (WEM) luminaires or sections must be installed in the same application space as Normal Power Sensing beaconing WaveLinx devices.
• All WaveLinx sensor options come with Normal Power Sensing Beacons.
• UL924 Bypass Relay Devices (T) are not required when WaveLinx with UL924 bypass control (WEM) and WaveLinx devices with Normal Power Sensing beacons are installed in the same application space.
• WaveLinx with UL924 bypass control (WEM) available with WaveLinx Wireless Controls options as part of a WaveLinx control system.
• Reference WaveLinx section for additional details


Integrated Controls

• 0-10V dimming to 1% standard
• Fifth Light DALI dimming to 5% standard; Fifth Light DALI dimming to 1% available by request*
• Lutron EcoSystem DALI dimming to 1% standard
• Additional control types may be available by request*
• Reference Sensor Placement section for default integrated sensor locations of individual luminaires and straight runs
• Please include preferred integrated sensor locations when providing sketch/drawing for a custom Pattern(P)


Mounting

• Adjustable aircraft cables for balancing
• 0.5in Rigid Stem Pendant options available
• Reference Mounting section and installation instructions for additional details


Finish

• Electrostatically applied polyester powder coat paint
• See Finish Options section for additional details
• RAL Colors and Custom Match Colors available by request*


Special Options*

• All special options available by request
• *Any options listed as 'available by request' require review and may impact pricing and leadtime
• Consult factory to request any options not listed
• Reference the Mods Collection for common special option requests


Compliance

• UL listed for damp locations
• IC Rated for insulation contact (except where noted)
• RoHS
• Tested to IESNA LM-79 and LM-80
• Can be used for State of California Title 24 high efficacy luminaire
• DLC qualified options available

Warranty

• Five year limited warranty
