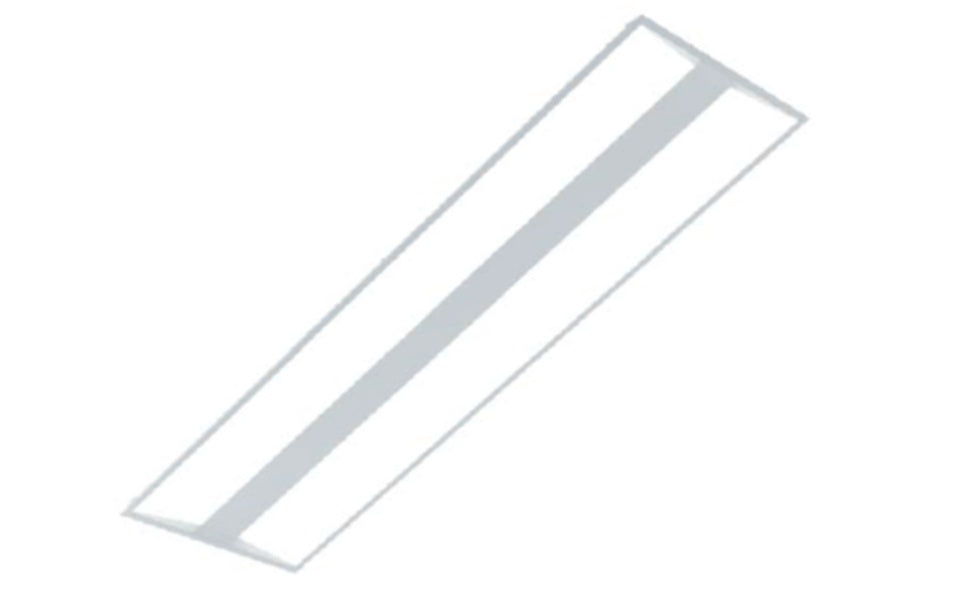

Metalux 612EN-LD2-58-UNV-L840-CD1-U 47W WaveStream LED Troffer, 5723 Lumens, 120-277V, 0-10V Driver

PRODUCT FAMILY SPECIFICATIONS

Construction

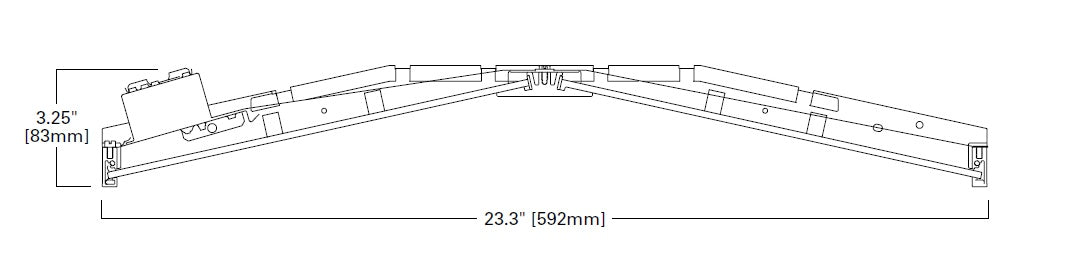

Shallow 3-1/4" deep housing is extruded aluminum frame and injected molded composite end plates. End plates are securely attached with screws for strength and rigidity and the elimination of gaps. End plates have accessory grid-lock feature for safety and convenience. Four auxiliary fixture end suspension points are
provided. Large access plate for supply connection.

Controls
Standard a 0-10V continuous dimming driver that works with any 0-10V control/dimmer. Or, go digital with the Digital Addressable Lighting Interface (DALI) drivers, dimmable down to 1% using the HD option. Combine with energysaving products like occupancy sensors, daylighting controls, and lighting relay panels to maximize
energy savings.

Electrical
Long-life LED system coupled with electrical driver to deliver optimal performance. LED’s available in 3000K, 3500K or 4000K with a typical CRI ≤ 85. Projected life
is 100,000 hours at 92% lumen output. Electronic drivers are available for 120-277V applications.

Driver Access
Drivers can be accessed via plenum.

Finish
Durable frame has high reflectance baked matte white enamel finish for luminous uniformity.

Optics
Precision formed optical assembly with positively retained higH optical grade acrylic lenses provide a directed optical distribution using WaveStream technology.

Compliance
Components are UL recognized.
Indoor luminaires are cULus listed and CE marking for 25° C ambient environments, RoHS
compliant, and comply with IESNA LM-79. LEDs comply with LM-80 standards. Options to meet Buy American and other domestic preference requirements.

Warranty
Five year warranty.
