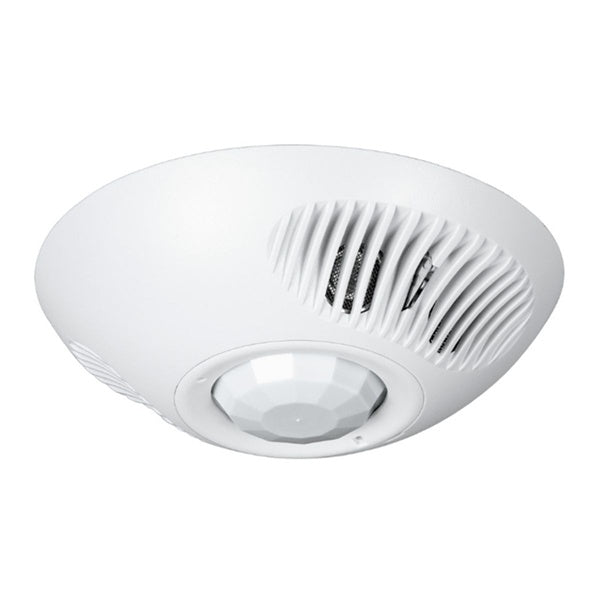

NX Lighting Controls NXSMDT-OMNI Digital Smart Occupancy Sensor, PIR and Ultrasonic, with Daylight Harvesting, Integrated Bluetooth, Dual RJ45 Smart Port, Indoor Ceiling Mount Sensor, White

PRODUCT FAMILY SPECIFICATIONS

CONSTRUCTION

• Housing: Rugged injection molded plastic, Polylac FR-ABS, (UL-94 5VA)flame class
  rating
• Color: White, Black, Gray
• 5.0oz (141.7g)

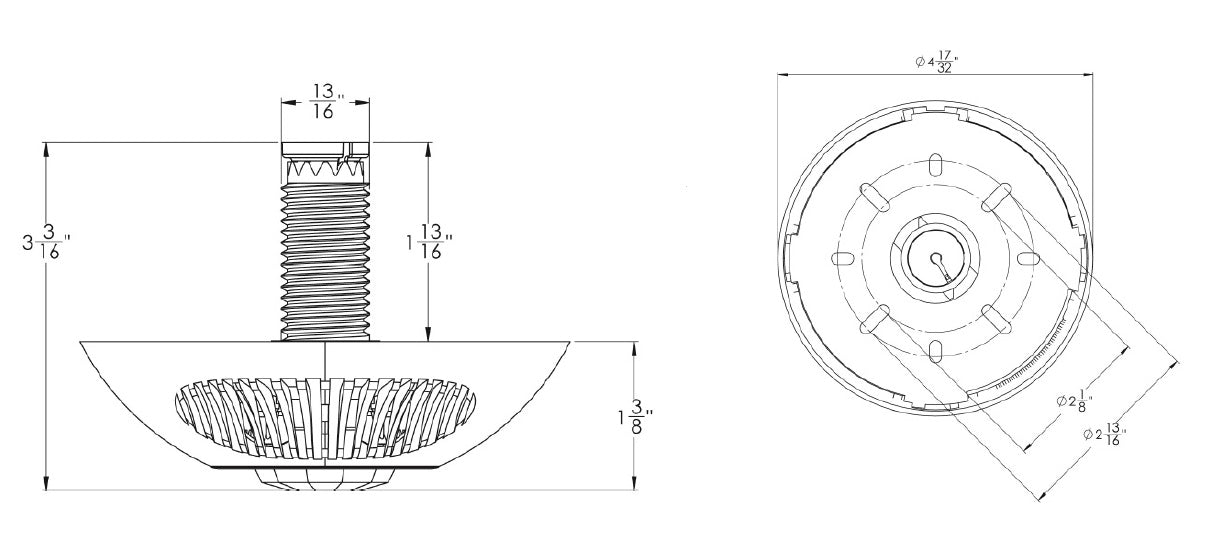

• Dimensions: 4.0" (101.60mm) W x 1.5" (38.10mm) H

MOUNTING

• Mounting base provided
• Recommended Mounting Height: 8 ft (2.44m) with a max mounting height of 12ft (3.66m)

ELECTRICAL

• Input
• Input Voltage: 12-24VDC Class 2 supplied by NX Room Controller (p/n NXRCFX -not included)
• Power Consumption: 55mA
• NX Control PBU Rating: -7 PBUs

OPERATING ENVIRONMENT

• Rated for Indoor Use Only
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Relative humidity (non-condensing) 0% to 95%

WIRELESS

• 2.4GHz: IEEE 802.15.1 based
• Bluetooth Version V5.2

SENSOR

• Detection Technology: Passive Infrared and Ultrasonic (Selectable)
• 1:2.75 Coverage Pattern (mounting height: coverage radius)
• Coverage: Adjustable up to 2,000 square feet
• Max Mounting Height 12ft
• LED Indicator (Red) indicates infrared motion detection
• LED Indicator (Green) indicates ultrasonic motion detection
• Daylight Sensor: Integrated Closed Loop. Sensor supports an enhanced open loop compensation algorithm

PROGRAMMING INTERFACE

• NX Lighting Controls Mobile App
• NX Site Manager Adapter for Network Applications

CERTIFICATIONS

• cULus Listed
• Complies with FCC Part 15.247
• FCC ID: YH9NXSMDT-OMNI
• IC: 9044A-NXSMDTOMNI
• This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9). See Buy America(n) Solutions.

WARRANTY

• 5 year limited warranty
