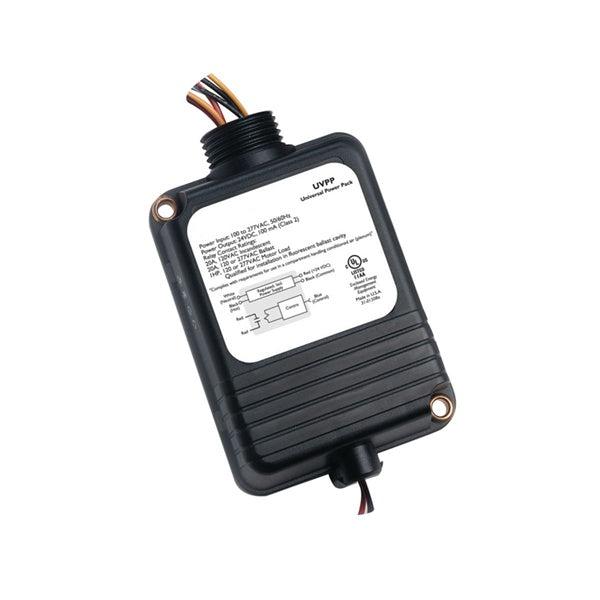

NX Lighting Controls UVPP-U Universal Voltage Power Pack, BAA Compliant

PRODUCT FAMILY SPECIFICATIONS

CONSTRUCTION

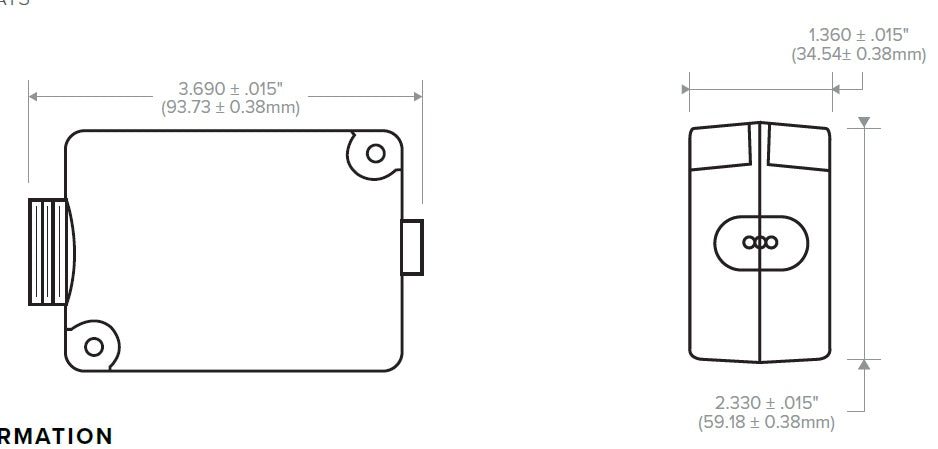

• 3.69" H x 2.33" W x 1.36" D (93.73mm H x 59.18mm W x 34.54mm D)
• 15 oz. (425.24 g)
• Black


INSTALLATION

• Complies with requirements for use in a plenum area
• Plenum rated for external junction box mounting
• Mounts outside junction box via 1/2" EMT threaded nipple


ELECTRICAL

• 120/277VAC; 50/60Hz
• 24VDC; 150mA nominal, isolated, and regulated
• 20A: 120VAC incandescent
• 20A: 120 or 277VAC ballast
• 1HP: 120 or 277VAC motor load

OPERATION

• Indoor use only
• Operating temperature: 32° to 104°F (0° to 40°C)
• Relative humidity (non-condensing): 0% to 95%

CERTIFICATIONS

• UL and cUL listed
• This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9) and Trade Agreements Act (FAR 52.225-11).
• See Buy America(n) Solutions

WARRANTY

• 5 year warranty
