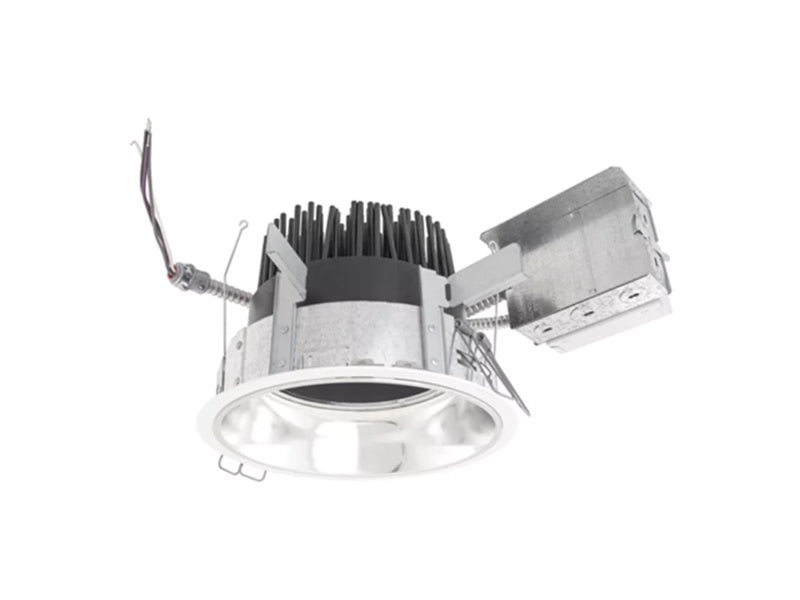

Portfolio LDRT8B1201D010 8" LED Downlight Retrofit, 12000 Lumens, 0-10V Dimming to 1%, 120-277V

PRODUCT FAMILY SPECIFICATIONS

Lower Shielding Reflector

• Self-flanged, spun .060" thick aluminum lower reflector
• Lensed upper optical chamber
• Provides superior lumen output with minimal source brightness
• Available in all Portfolio Alzak® finishes


Trim Retention

• Two torsion springs hold lower reflector flange tightly to the finished ceiling surface

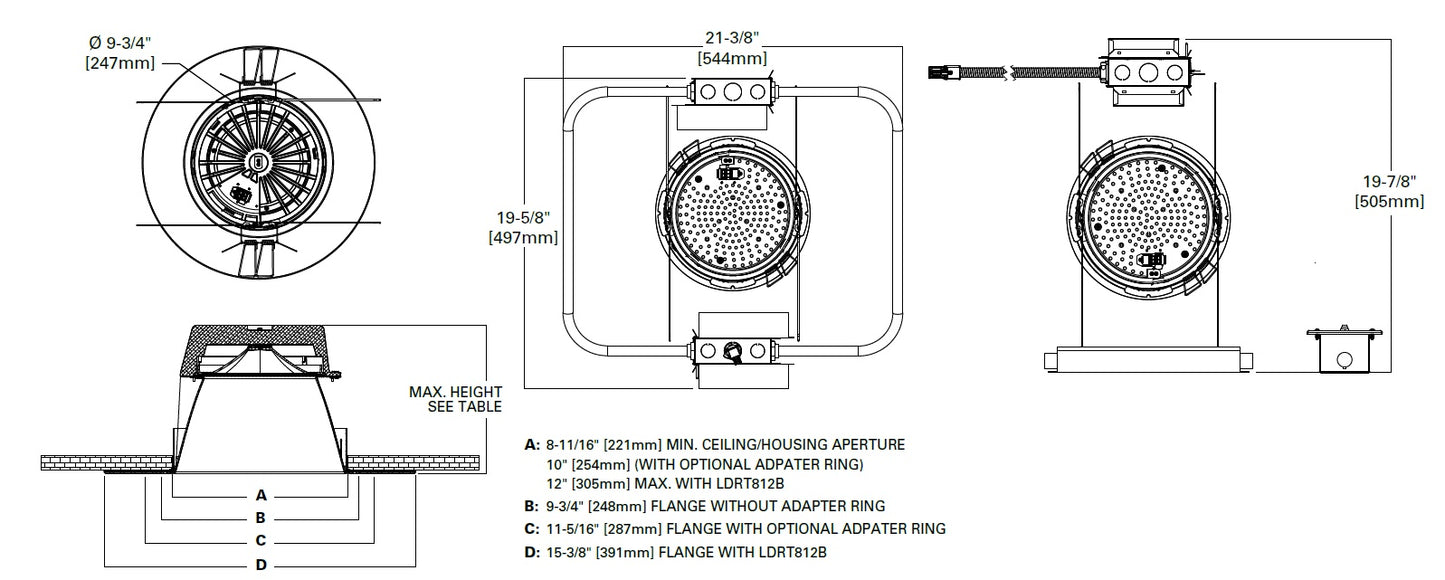

Retrofit Ring

• Galvanized steel ring installs with four mouse trap springs for secure installation
• Accommodates up to 2" ceiling thickness
• Installs in ceiling openings from 8.7" to 10" with optional adapter ring
• Pre-wired flexible conduit with snap in connector installs into 1/2" knockout on the existing junction box

Thermal

• Aluminum heat sink conducts heat away from the LED module for improved performance and longer life


LED System

• Contains a plurality of high brightness white LED’s combined with a high reflectance upper reflector and transitional lens producing even distribution with no pixilation
• Lumen output shall not decrease by more than 10% over the minimum life of 55,000 hours (L90 > 55,000 hours)
• Color variation within 2-step MacAdam ellipses
• Flexible disconnect allows for tool-less replacement of LED engine from below ceiling
• 2700K, 3000K, 3500K, 4000K and 5000K correlated color temperature (CCT)
• Available in 80, 90 or 97 color rendering index (CRI) VividTune™ Color Tuning Solutions
• D2W™ -- Dim-to-Warm shifts CCT from 3000K to 1850K as fixture dims, mimicking halogen sources
• W2N -- Tunable white CCT range from 2700K to 6500K or 2000K to 5000K; 90 CRI
• BioUp - Tunable white CCT range 2700K to 5000K
  Provides the biological effectiveness of natural sunlight, with color temperatures that are more comfortable for indoor environments


Driver

• Combination 0-10V/Phase Cut driver provides flicker free dimming from 100% to 1%
• Optional 1% 0-10V, Fifth Light, DMX or Lutron®Ecosystem
• Driver can be serviced from above or through the aperture
• 1,000-7,000 lumens utilize one driver; 8,000-12,000 lumens utilize two drivers; 15,000-20,000 lumens utilize three drivers (with D010); reference ordering information for other variations
• Distributed low voltage power system combines power, lighting, and controls with ease of installation.


Connected Lighting System
Two WaveLinx connected solutions to choose from. Refer to WaveLinx system specifications and application guides for details.
WaveLinx PRO Tilemount Sensor Kit
WaveLinx PRO WPST tilemount sensor kit offers daylight dimming, PIR motion sensing, scene and zone configuration, automatic commissioning;
and optional RLTS - Real Time Location Services available.
WaveLinx PRO Wireless Node
WaveLinx PRO WPN wireless node provides luminaire-level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with 0-10V driver only. Note: Not compatible with 347V or Chicago plenum.
WaveLinx LITE Tilemount Sensor Kit
WaveLinx LITE WLST tilemount sensor kit offers daylight dimming and PIR motion sensing, scene and grouping configuration.
WaveLinx LITE Wireless Node
WaveLinx LITE WLN wireless node provides luminaire level control with scene and zone configuration without an integrated sensor;
Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with 0-10V driver only. Note: Not compatible with 347V or Chicago plenum.

WaveLinx Tilemount Sensor Kits Application

• The WPST and WLST tilemount sensor kits include a control module mounted on the luminaire junction box via 1/2" knock-out, and a tilemount sensor on 54-inch whip; for ceiling installation by direct-mount spring clips or via mounting bracket in octagon ceiling boxes.
• The WPST and WLST tilemount sensor kits may be ordered as factory installed on the luminaire, or ordered separately as a field installed accessory kit.
• Note: WaveLinx PRO devices are only compatible with the WaveLinx PRO system.
• Note: WaveLinx LITE devices are only compatible with the WaveLinx LITE system.

Compliance

• Thermally protected
• cULus Certified to UL 1598 / C22.2 No. 250.0 suitable for wet locations with downlight with covered ceiling
• cULus listed for 25°C ambient environments
• Optional City of Chicago environmental air (CCEA) marking for plenum applications
• EMI/RFI emissions per FCC 47CFR Part 18 Class B consumer limits
• Insulated ceiling (IC) rated up to 2000 lumens; 3000 lumens and above, Tunable White, BioUp 2000 lumens and above are non-IC rated (insulation must be kept 3" from top and sides of housing)
• RoHS compliant
• T24 compliant
• IP20 above ceiling
• IP65 below ceiling
• Photometric testing completed in accordance with IES LM-79 standards
• Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
• 6,000 lumens and above are marked spacing and must follow spacing requirements

Warranty

• Five year warranty
