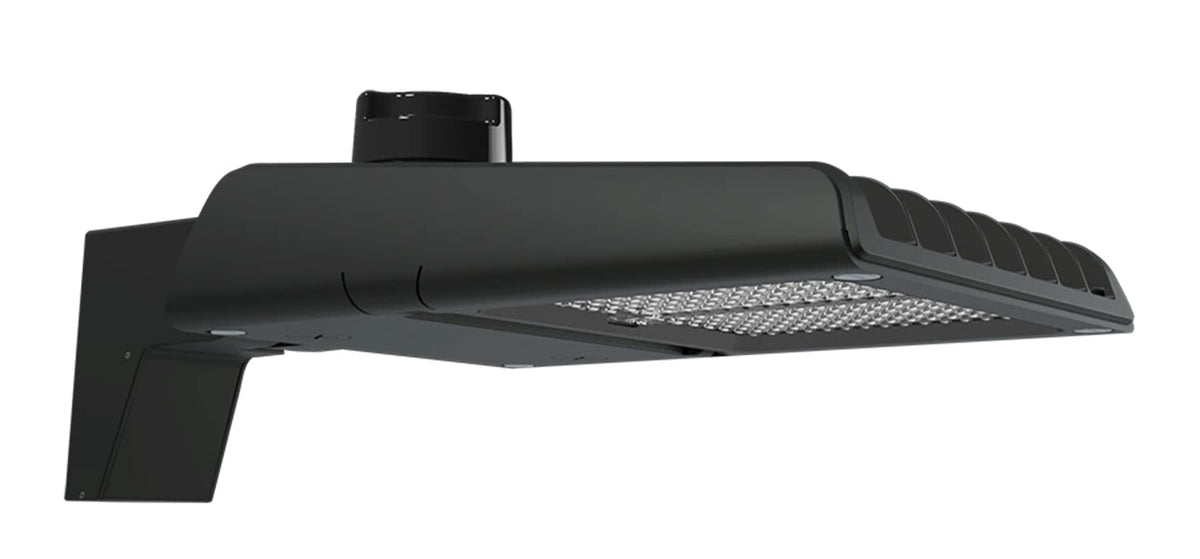

RAB A22-2T70 LED Area Light 70/60/50W, Type II Distribution, Adjustable Mount, 3000K, 4000K and 5000K Color, 120-277V, 0-10V Dimming, Bronze
RAB A22-2T70 LED Area Light 70/60/50W, Type II Distribution, Adjustable Mount, 3000K, 4000K and 5000K Color, 120-277V, 0-10V Dimming, Bronze
Regular price
Price:
$222.80
Regular price
Price:
Sale price
$222.80
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Field Adjustable Light Output:
|
| 70W/60W/50W (factory default: 70W) | |
| Color Temperature Selectable: | |
| 3000K, 4000K and 5000K (factory default:4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating of IP66 for dust and water
|
|
DLC Listed
|
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
70W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
|
|
Electrical
|
|
|
Driver
|
Constant Current, Class 1, 120-277V, 50/60 Hz:
|
| 70W: 120V: 0.58A, 208V: 0.33A, 240V: 0.29, 277V: 0.25A | |
| 60W: 120V: 0.50A, 208V: 0.29A, 240V: 0.25, 277V: 0.22A | |
| 50W: 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.18A | |
|
Dimming Driver
|
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
|
|
THD
|
4.37% at 120V, 7.77% at 277V
|
|
Power Factor
|
99.7% at 120V, 94.6% at 277V
|
|
7-Pin Receptacle with Shorting Cap
|
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
|
|
Surge Protection
|
6 kV
|
|
Optical
|
|
|
IES Classification
|
The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.
|
|
BUG Rating
|
|
|
Type 2
|
70W: B2 U0 G2 |
| 60W: B2 U0 G2 | |
| 50W: B2 U0 G1 | |
|
LED Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy, surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting temperature is -40°F (-40°C)
|
|
Maximum Ambient Temperature
|
Suitable for use in up to 104°F (40°C)
|
|
Lens
|
Polycarbonate lens
|
|
Housing
|
Die-cast aluminum
|
|
Effective Projected Area (EPA)
|
1 Fixture: 0.3
|
| 2 Fixtures: 0.7 | |
| 3 Fixtures: 1.2 | |
| 4 Fixtures: 1.2 | |
|
Finish
|
Formulated for high durability and long-lasting color
|
|
Gaskets
|
High-temperature silicone gaskets
|
|
Green Technology
|
Mercury and UV free. RoHS-compliant components.
|
|
Other
|
|
|
5-Year Limited Warranty
|
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
