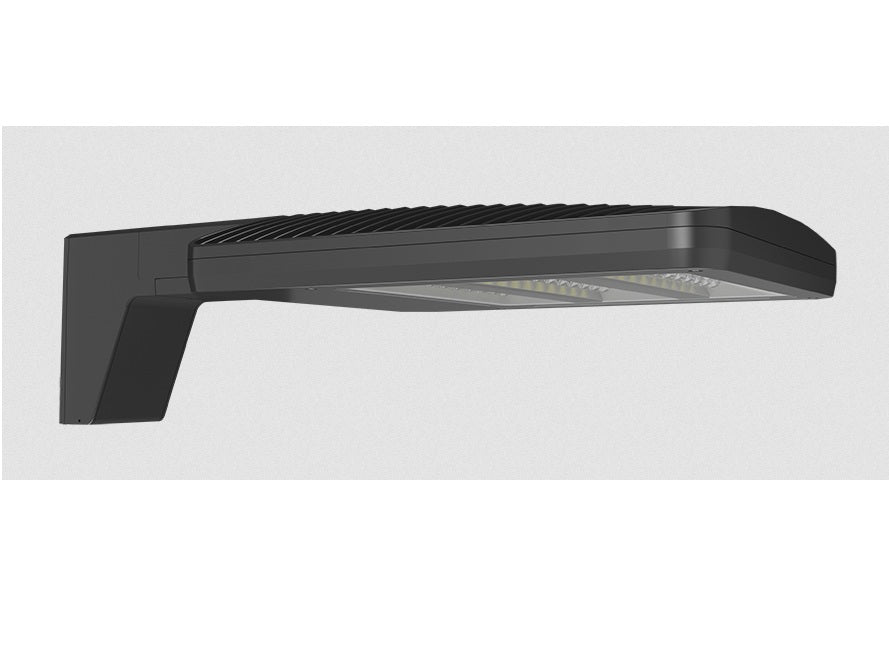

RAB ALEDS3TN/7PR 80W/60W/40W Adjustable Output LED Area Light, 82 CRI, 4000K (Cool), Wet Location
RAB ALEDS3TN/7PR 80W/60W/40W Adjustable Output LED Area Light, 82 CRI, 4000K (Cool), Wet Location
Regular price
Price:
$725.00
Regular price
Price:
Sale price
$725.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable (Wattage)
|
Field adjustable light output in 3 discrete steps:
|
| Small Housing: 80W/60W/40W (factory default 80W) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet locations
|
|
IP Rating
|
Ingress protection rating of IP66 for dust and water
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
DLC Listed
|
|
|
LED Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy, discrete, surface-mount LEDs
|
|
Color Consistency
|
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
|
|
Color Uniformity
|
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
Driver
|
40W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.34A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A
|
| 60W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.50A, 208V: 0.30A, 240V: 0.25A, 277V: 0.22A | |
| 80W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.67A, 208V: 0.40A, 240V: 0.34A, 277V: 0.30A | |
|
Dimming Driver
|
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
|
|
THD
|
2.02% at 120V, 8.16% at 277V
|
|
Power Factor
|
99.9% at 120V, 96.5% at 277V
|
|
Surge Protection
|
Line to Line: 10 kV
|
| Line to Ground: 6 kV | |
|
7-Pin Receptacle
|
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
Equivalent to 250W Metal Halide
|
|
Optical
|
|
|
IES Classification
|
The Type III distribution is meant to be located near the side of an area, projecting the light outward to fill the area. Ideal for roadways, general parking areas, lighting applications and where a large pool of light is required.
|
|
Bug Rating
|
80W: B1 U0 G2
|
| 60W: B1 U0 G2 | |
| 40W: B1 U0 G1 | |
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting temperature is -40°F (-40°C)
|
|
Ambient Temperature
|
Max Power Temp Rating: 104°F (40°C )
|
| Middle Power Temp Rating: 52°C (125°F) | |
| Low Power Temp Rating: 58°C (137°F) | |
|
Housing
|
Die-cast aluminum
|
|
Reflector
|
Aluminum reflector with white polycarbonate
|
|
Vibration Rating
|
3G vibration rating per ANSI C136.31
|
|
Effective Projected Area (EPA)
|
1 Fixture: 0.35
|
| 2 Fixtures at 90°: 0.54 | |
| 2 Fixtures at 180°: 0.7 | |
| 3 Fixtures at 90°: 0.9 | |
| 4 Fixtures at 90°: 0.9 | |
|
Gaskets
|
High-temperature silicone gaskets
|
|
Finish
|
Formulated for high durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free. RoHS-compliant components. |
|
Installation
|
|
|
Mounting
|
Universal mounting arm compatible for hole spacing patterns from 1" to 3" center to center. Round Pole adapter plate included as a standard. Easy slide and lock to mount fixture with ease.
|
|
Other
|
|
|
10-Year, No-Compromise Warranty
|
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
