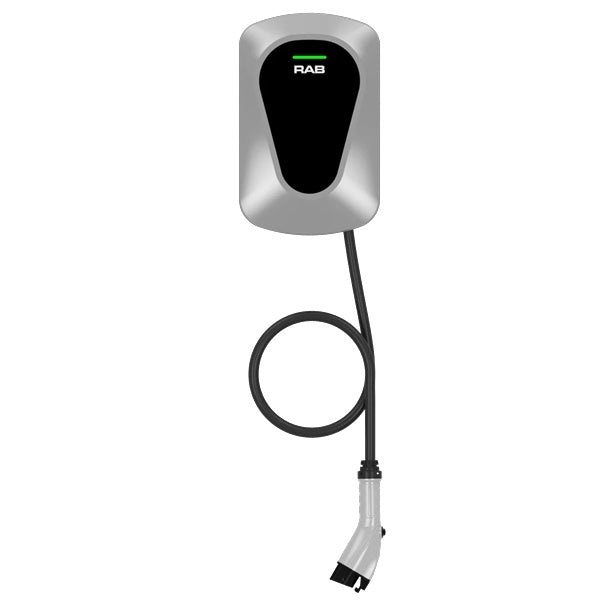

RAB EVC48/LCB Smart Wifi Plug and Play Charger, EVC Level 2, 48A Series with Wi-Fi
RAB EVC48/LCB Smart Wifi Plug and Play Charger, EVC Level 2, 48A Series with Wi-Fi
Regular price
Price:
$1,103.26
Regular price
Price:
Sale price
$1,103.26
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Performance | |
|
Product Type
|
EVC Level 2, 48A Series with Wi-Fi
|
|
Description
|
48A / 7.6 kw Residential Charger / 25' Cord / No display, LED indicator light
|
|
Output Power
|
11.5 kW
|
|
Power Configuration Settings
|
Max 48A
|
|
Electrical
|
|
|
Charging Interface
|
SAEJ1772 Type 1
|
|
Charging Method
|
Plug & Play - Level 2 AC Charger
|
|
Input Current
|
48A
|
|
Operating Frequency
|
50/60Hz
|
|
Input Voltage
|
200-240V, Single Phase
|
|
AC Input Connection
|
NEMA 14-50 plug
|
|
Output Current
|
48A (max)
|
|
Operating Temperature
|
-22°F to 131°F (-30°C to + 55°C)
|
|
Humidity
|
Max 90%
|
|
Input Side Protection
|
Leakage protection, Over-voltage protection, Over current protection, Under-voltage protection, Short circuit protection, Over temperature protection
|
|
Output Side Protection
|
Leakage protection, Over-voltage protection, Over current protection, Under-voltage protection, Automatic full charge protection, Control pilot fault protection, Short circuit protection, Over temperature protection
|
|
Internal Protection
|
OTP, Relay Welding Detection, CCID Self-Test, MCU Function Fault Detection
|
|
Rating of Branch Circuit Breaker
|
60A
|
|
Input Wire Size
|
8 AWG
|
|
Metering Accuracy
|
Meter IC (1% Accuracy)
|
|
Construction
|
|
|
Display Screen
|
No Display
|
|
Number of Ports
|
Single
|
|
Charging Cable
|
25 ft
|
|
Finish
|
Silver
|
|
Tamper Resistant
|
IK08 rated to protect the unit against external impacts
|
|
Installation
|
|
|
Mounting
|
Wall or Pedestal
|
|
Hardwired
|
Yes
|
|
Compliance
|
|
|
Listings
|
ETL Listed
|
|
Shock Protection
|
CCID20. A charging circuit interrupting device (CCID) automatically interrupts the circuit when the current reaches or exceeds the threshold current of 20mA.
|
|
OpenADR
|
No
|
|
IP Rating
|
Ingress protection rating of IP65 for dust and water
|
|
NEMA Rating
|
Type 4, weatherproof protection
|
|
California Type Evaluation Program (CTEP)
|
No
|
|
Energy Star Approved
|
Yes
|
|
Energy Star ID
|
3942576
|
|
RoHS
|
Mercury and UV free. RoHS-compliant components.
|
|
FCC
|
Complies with Part 15 of the FCC Rules
|
|
Buy American Act Compliance
|
No
|
|
Other
|
|
|
Compatible Accessories
|
EVPS Single Pedestal Base
|
| EVPD Dual Pedestal Base | |
|
3-Year Limited Warranty
|
Electric Vehicle Charger products will be free from defects in materials and workmanship for a period of (3) years from the date of original sale to RAB's distributor. The product shall be considered defective only if it cannot be brought back to service by assistance from RAB technical product support representative. If you have a technical issue or question regarding warranty, call our technical support team at RAB Help line. Exceptions apply as stated on product specification sheets incorporated herein by reference. Defects in material or workmanship do not include improper installation or operation, alterations, power surges or overheating due to external conditions. Defects caused by acts of vandalism and incidents beyond control of manufacturer resulting in inoperability of the electric vehicle charger are not covered by the material or workmanship warranty.
|
|
Software Specifications
|
|
|
App Interface
|
Lightcloud Blue App
|
|
Software Features
|
On/Off Control, Remote Access, Schedule charging sessions
|
