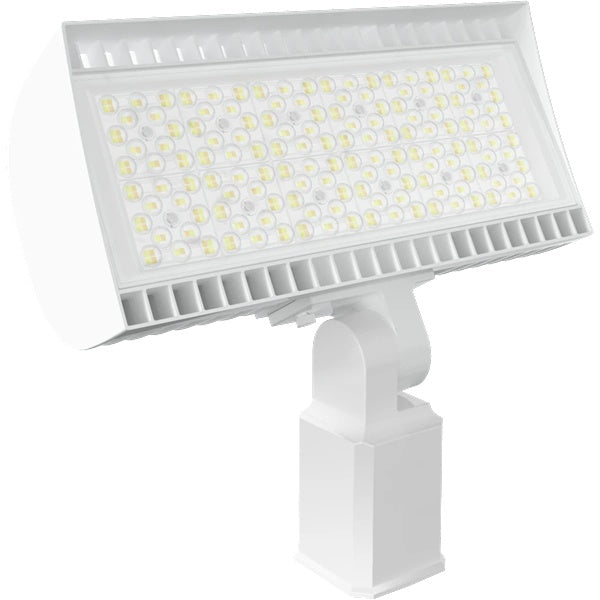

RAB FXLEDSSFW/480/7PR 168/132/97/69W Slipfitter Mount LED Floodlight, 10872-24332 Lumens, 82-86 CRI, White Finish
RAB FXLEDSSFW/480/7PR 168/132/97/69W Slipfitter Mount LED Floodlight, 10872-24332 Lumens, 82-86 CRI, White Finish
Regular price
Price:
$1,141.80
Regular price
Price:
Sale price
$1,141.80
Unit price
per
Ordering a Large Quantity?
Request a quote
description
|
Field Adjustability
|
|
|
Field Adjustable
|
Field Adjustable Light Output:
|
| 168/132/97/69W (factory default 168W) | |
| Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K) | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
|
|
IP Rating
|
Ingress protection rating of IP65 for dust and water
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
Trade Agreements Act Compliant
|
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
|
|
DLC Listed
|
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
|
|
LED Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy, discrete, surface-mount LEDs
|
|
Color Consistency
|
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
|
|
Color Uniformity
|
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
Driver
|
69W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.15A
|
| 97W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.21A | |
| 132W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.28A | |
| 168W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.35A | |
|
Dimming Driver
|
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
|
|
Surge Protection
|
L/N: 6 kV, L/N-PE: 6 kV
|
|
7-Pin Receptacle
|
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
168W: 750W Metal Halide
|
| 132W: 400W Metal Halide | |
| 97W: 400W Metal Halide | |
| 69W: 350W Metal Halide | |
|
Optical
|
|
|
NEMA Type
|
NEMA Beam Spread 6H x 6V
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting temperature is -40°F (-40°C)
|
|
Ambient Temperature
|
Max Power Temp Rating: 104°F (40°C )
|
| Middle Power Temp Rating: 47°C (117°F) | |
| Low Power Temp Rating: 54°C (129°F) | |
|
Housing
|
Die-cast aluminum
|
|
Lens
|
Polycarbonate lens on LEDs, glass lens as cover
|
|
Reflector
|
Polyethylene Terephthalate (PET)
|
|
Gaskets
|
Ethylene Propylene Diene Monomer (EPDM)
|
|
Finish
|
Formulated for high durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free. RoHS-compliant components.
|
|
Installation
|
|
|
Mounting
|
2 3/8" slipfitter mount with stainless steel hardware
|
|
Other
|
|
|
10-Year, No-Compromise Warranty
|
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
