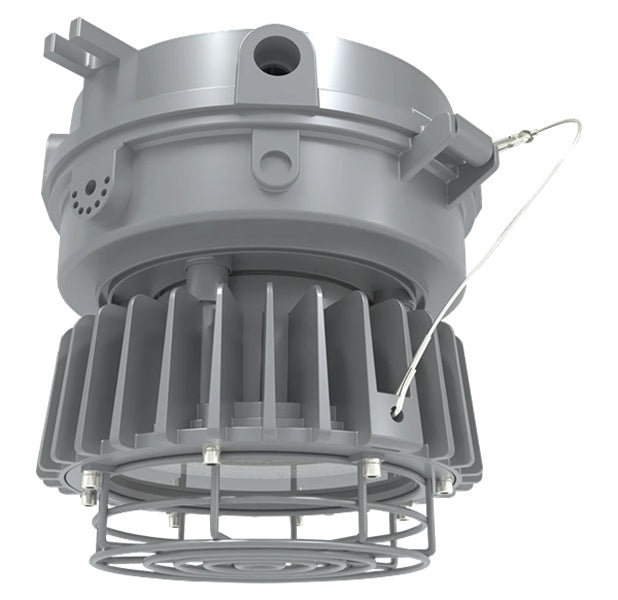

RAB HAZLED60CCF 60W Hazardous Location LED Light, 8957 Lumens, 5000K, 80 CRI, Ceiling Mount
RAB HAZLED60CCF 60W Hazardous Location LED Light, 8957 Lumens, 5000K, 80 CRI, Ceiling Mount
Regular price
Price:
$842.33
Regular price
Price:
Sale price
$842.33
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Hazardous Location Classifications | |
|
Class I Division 2 (Groups A, B, C, D)
|
Class I: A hazardous location in which flammable gases or vapors may be present in the air in sufficient quantities to be explosive or ignitable, such as petroleum refineries, aircraft hangars, dry cleaning plants, utility gas plants or storage areas for liquified petroleum or natural gas, and spray finishing areas.
|
| Division 2: Abnormal condition, where ignitable concentrations of flammable gases, vapors or liquids are not like to exist under normal operating conditions, for example:Closed storage drums containing flammable liquids in an inside storage room would not normal allow the hazardous vapors to escape into the atmosphere. But if one of the containers is leaking, you've got an abnormal condition. | |
| Group A - The only substance in group A is acetylene because it is a gas with extremely high explosion pressures. | |
| Group B - This group includes hydrogen and other materials with similar characteristics. | |
| Group C & D - The most usual Class 1 groups. They comprise the greatest percentage of all Class I hazardous locations. Found in Group C is ethylene. Found in Group D are many of the most common flammable substances such as butane, gasoline, natural gas and propane. | |
|
Class II Division 1 (Groups E, F, G)
|
Class II: Combustible dust may be present
|
| Division 1: Ignitable concentrations of hazards exist under normal operation conditions and/or where the hazard is caused by frequent maintenance or repair work or frequent equipment failure | |
| E: Combustible metal dusts: aluminum, commercial alloys and magnesium | |
| F: Combustible carbonaceous dusts: carbon black, charcoal, coal and coke dusts | |
| G: Other combustible dusts: Chemicals, flour, grain, plastic and wood | |
|
Class II Division 2 (Groups F, G)
|
Class II: Combustible dust may be present
|
| Division 2: Ignitable concentrations of hazards exist under abnormal operation conditions | |
| F: Combustible carbonaceous dusts: carbon black, charcoal, coal and coke dusts | |
| G: Other combustible dusts: Chemicals, flour, grain, plastic and wood | |
|
Class III
|
Class III: Easily ignitable fibers or flyings may be present
|
|
UL 844
|
Electric lighting fixtures for use in hazardous (classified) locations
|
|
UL 1598
|
Electric lighting fixtures for use in non-hazardous locations
|
|
Compliance
|
|
|
UL Listed
|
Suitable for wet locations
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating of IP66 for dust and water
|
|
DLC Listed
|
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
|
|
Electrical
|
|
|
Driver
|
Constant Current, Class 2, 50/60 Hz, 120V-277V, 120V: 0.48A, 208V: 0.29A, 240V: 0.25A, 277V: 0.22A
|
|
Dimming Driver
|
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
|
|
THD
|
3.8% at 120V, 6.33% at 277V
|
|
Power Factor
|
99.8% at 120V, 91.9% at 277V
|
|
Surge Protection
|
L-N:4 kV
|
| L/N-FG:6 kV | |
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting temperature is Ta = -40°C (-40°F)
|
|
Maximum Ambient Temperature
|
Suitable for use in up to Ta = 140°F(60°C)
|
|
Housing
|
Die-cast aluminum
|
|
Lens/Globes
|
Clear flat glass lens
|
|
Gaskets
|
High-temperature silicone
|
|
Green Technology
|
Mercury and UV free. RoHS-compliant components.
|
|
Finish
|
Formulated for high durability and long-lasting color
|
|
Installation
|
|
|
Mounting
|
Ceiling mount
|
|
LED Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy, surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
|
|
Color Consistency
|
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
|
|
Optical
|
|
|
BUG Rating
|
B3 U0 G1
|
|
Other
|
|
|
5-Year, No-Compromise Warranty
|
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
