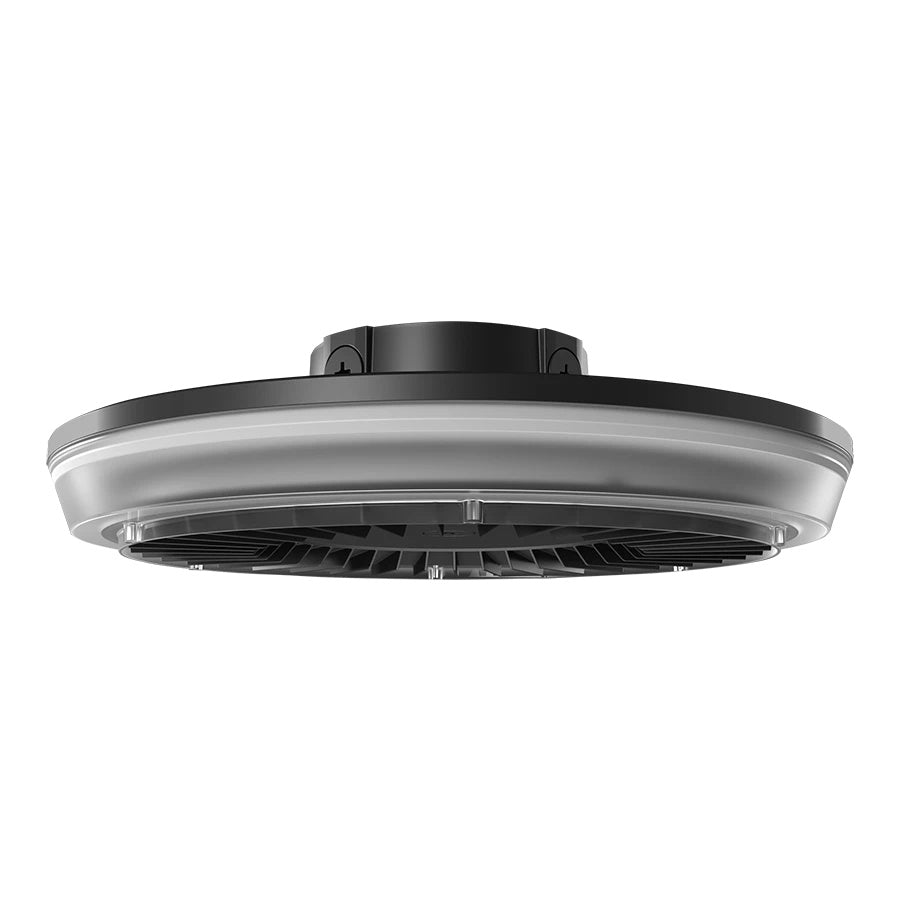

RAB PRT80R PORTO 80/70/60W Field Adjustable Garage Light, 3500/4000/5000K, 8235-11195 Lumens, On/Off Photocell, Bronze
RAB PRT80R PORTO 80/70/60W Field Adjustable Garage Light, 3500/4000/5000K, 8235-11195 Lumens, On/Off Photocell, Bronze
Regular price
Price:
$329.67
Regular price
Price:
Sale price
$329.67
Unit price
per
Ordering a Large Quantity?
Request a quote
description
|
Field Adjustability
|
|
|
Field Adjustable
|
Field Adjustable Light Output:
|
| 80W/70W/60W (factory default 80W) | |
| Color Temperature Selectable: | |
| 3500K, 4000K and 5000K (factory default 4000K) | |
| On/Off Photocell (factory default "Off") | |
|
Compliance
|
|
|
UL Listed
|
Suitable for wet locations
|
|
IP Rating
|
Ingress protection rating of IP65 for dust and water
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
DLC Listed
|
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
|
|
Driver
|
80W: Constant Current, Class 1, 50/60 Hz, 120V-277V, 120V: 0.75A, 208V: 0.46A; 240V: 0.40A, 277V: 0.32A
|
| 70W: Constant Current, Class 1, 50/60 Hz, 120V-277V, 120V: 0.60A, 208V: 0.34A; 240V: 0.30A, 277V: 0.26A | |
| 60W: Constant Current, Class 1, 50/60 Hz, 120V-277V, 120V: 0.50A, 208V: 0.29A; 240V: 0.25A, 277V: 0.22A | |
|
LED Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy, surface-mount LEDs
|
|
Color Consistency
|
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Color Uniformity
|
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
Dimming Driver
|
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
|
|
THD
|
80W: 5.41% at 120V, 8.9% at 277V
|
| 70W: 6.66% at 120V, 9.7% at 277V | |
| 60W: 7.38% at 120V, 7.51% at 277V | |
|
Power Factor
|
80W: 99.7% at 120V, 96.1% at 277V
|
| 70W: 99.6% at 120V, 94.9% at 277V | |
| 60W: 99.5% at 120V, 93.9% at 277V | |
|
Surge Protection
|
Ring Wave LN4 kV/LN-GND 6 kV
|
|
Aux Power Supply
|
Yes
|
|
Dim to Off
|
Yes
|
|
Photocell
|
Integrated photocell included with on/off switch (factory default: off)
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting temperature is -40°F (-40°C)
|
|
Maximum Ambient Temperature
|
Suitable for use in up to 104°F (40°C)
|
|
Gaskets
|
High-temperature silicone
|
|
Housing
|
Die-cast aluminum
|
|
Lens
|
Polycarbonate lens
|
|
Reflector
|
Polycarbonate
|
|
Green Technology
|
Mercury and UV free. RoHS-compliant components.
|
|
Finish
|
Formulated for high durability and long-lasting color
|
|
Installation
|
|
|
Mounting
|
Surface and pendant mounting
|
|
Optical
|
|
|
BUG Rating
|
80W: B3 U5 G5
|
|
Other
|
|
|
5-Year Limited Warranty
|
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
