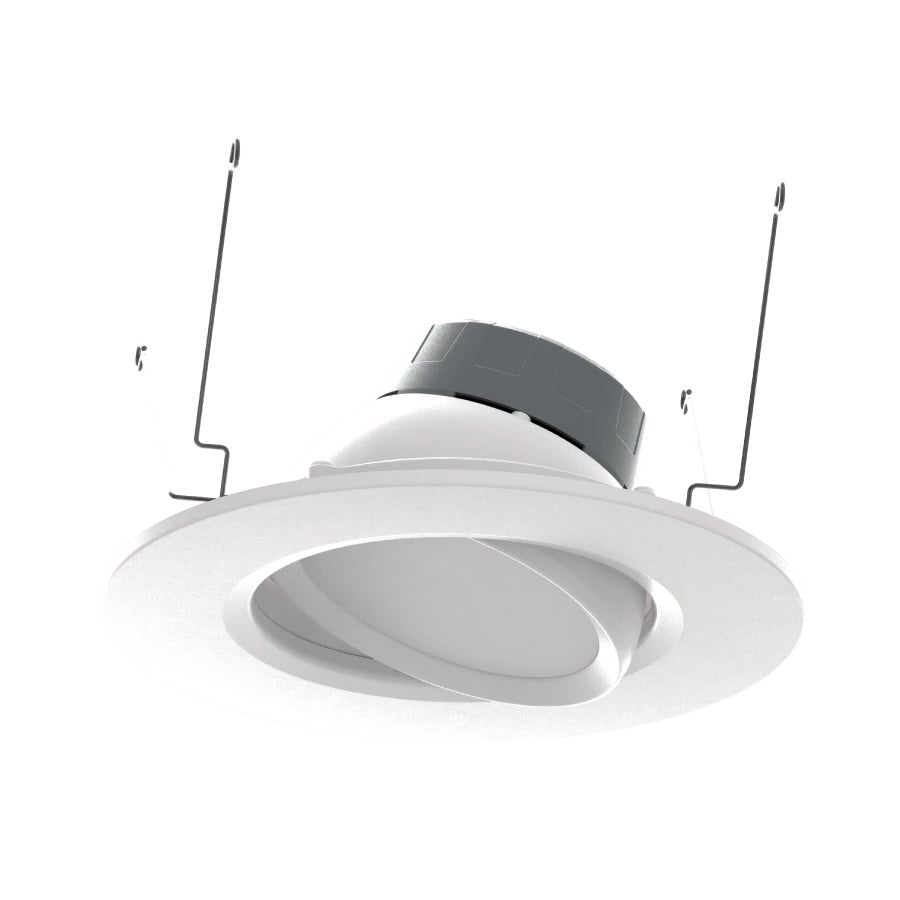

RAB Lighting RA6R119FA120WS 11W 6" LED Round Retrofit Downlight, Adjustable Head, 2700K, 3000K, 3500K, 4000K & 5000K Color Temperature
RAB Lighting RA6R119FA120WS 11W 6" LED Round Retrofit Downlight, Adjustable Head, 2700K, 3000K, 3500K, 4000K & 5000K Color Temperature
Regular price
Price:
$18.60
Regular price
Price:
Sale price
$18.60
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Performance | |
|
Product Type
|
LED Trim - Metal
|
|
Description
|
Contractor-grade retrofit gimbals offered with up to 5 field selectable color temperatures available in white & black finish.
|
|
Wattage Equivalency
|
100W Incandescent
|
|
Input Wattage
|
11W
|
|
Lumens
|
700lm
|
|
Lumens (Measured)
|
2700K: 1,160lm
|
| 3000K: 1,165lm | |
| 3500K: 1,191lm | |
| 4000K: 1,196lm | |
| 5000K: 1,171lm | |
|
Efficacy
|
100lm/W
|
|
L70 Lifespan
|
50,000-Hour LED lifespan based on IES LM-70 results
|
|
Electrical
|
|
|
Driver
|
Constant Current
|
|
THD
|
≤20%
|
|
Power Factor
|
≥0.9
|
|
Dimmable
|
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
|
|
Input Voltage
|
120V
|
|
Operating Frequency
|
60 Hz
|
|
Input Current @ 120V (mA)
|
100mA
|
|
Operating Temperature
|
-4°F to 104°F (-20 to 40°C)
|
|
Flicker
|
≤30%
|
|
LED Characteristics
|
|
|
Color Accuracy (CRI)
|
≥90
|
|
R9 Value
|
High color performance with R9 greater than 50
|
|
Color Consistency
|
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
|
|
Color Uniformity
|
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
|
|
Installation
|
|
|
Mounting
|
Recessed with housing
|
|
Construction
|
|
|

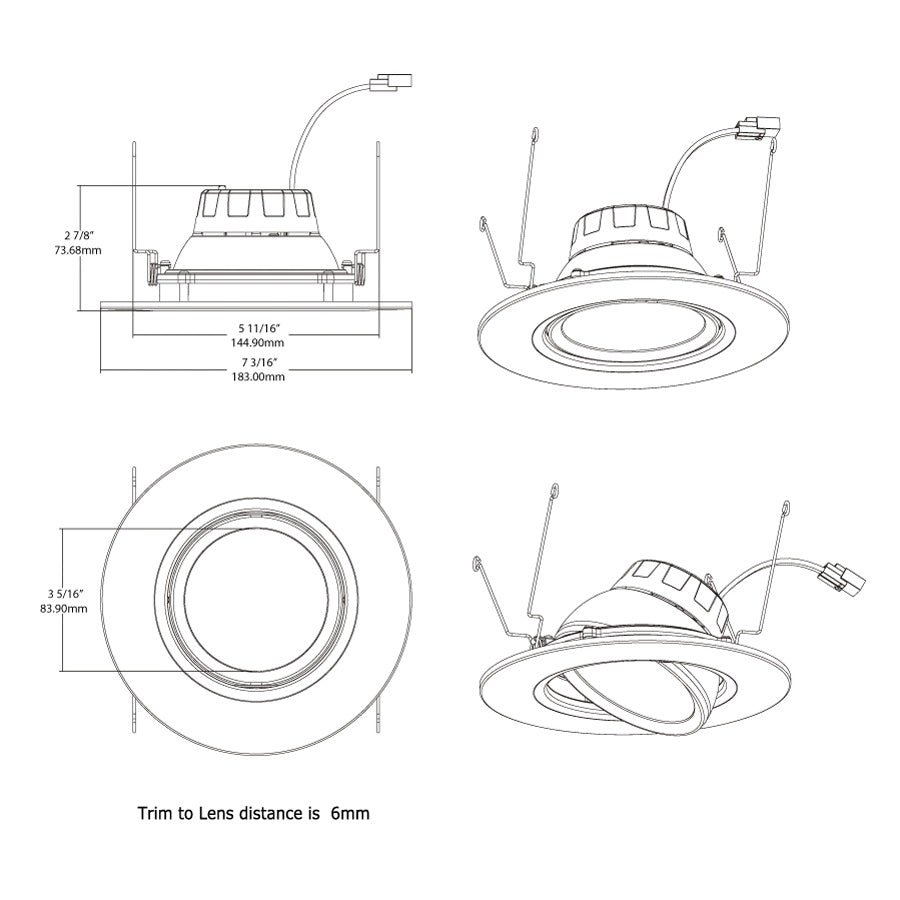

Size
|
6"
|
|
Shape
|
Round
|
|
Finish
|
White
|
|
Material
|
Constructed from spun aluminum
|
|
Trim Style
|
Smooth Splay
|
|
Lens Finish
|
Frosted
|
|
Lens
|
Regressed adjustable gimbal lens with a 35 tilt angle
|
|
Compliance
|
|
|
Listings
|
UL Listed, UL Recognized
|
|
Environment
|
Suitable for use indoors in dry and damp environments.
|
|
IC Rated
|
Depends on recessed housing used
|
|
Air Tight
|
No
|
|
Energy Star Approved
|
This product is ENERGY STAR® Certified.
|
|
Certification Model Number
|
DLR0126(RA6R119FA120WS)
|
|
California Title 20 Compliant
|
Can be used to conform with the requirements of California Title 20
|
|
California Title 24 JA8 Compliant
|
Can be used to conform with the requirements of California Title 24 Part 6.
|
|
California Energy Commission (CEC) Status
|
Lawful for Sales in California
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
RoHS
|
Mercury and UV free. RoHS-compliant components.
|
|
FCC
|
Complies with Part 15 of the FCC Rules
|
|
Other
|
|
|
Compatible Accessories
|
NDCANIC6R
|
|
5-Year, No-Compromise Warranty
|
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
