Home > RAB Lighting > RAB RAIL175/LC Rail LED High Bay with Lightcloud Control System, Lightcloud Highbay Sensor, 5000K (Cool), 25527 Lumens, 83 CRI, 120-277V, Dimmable, White Finish

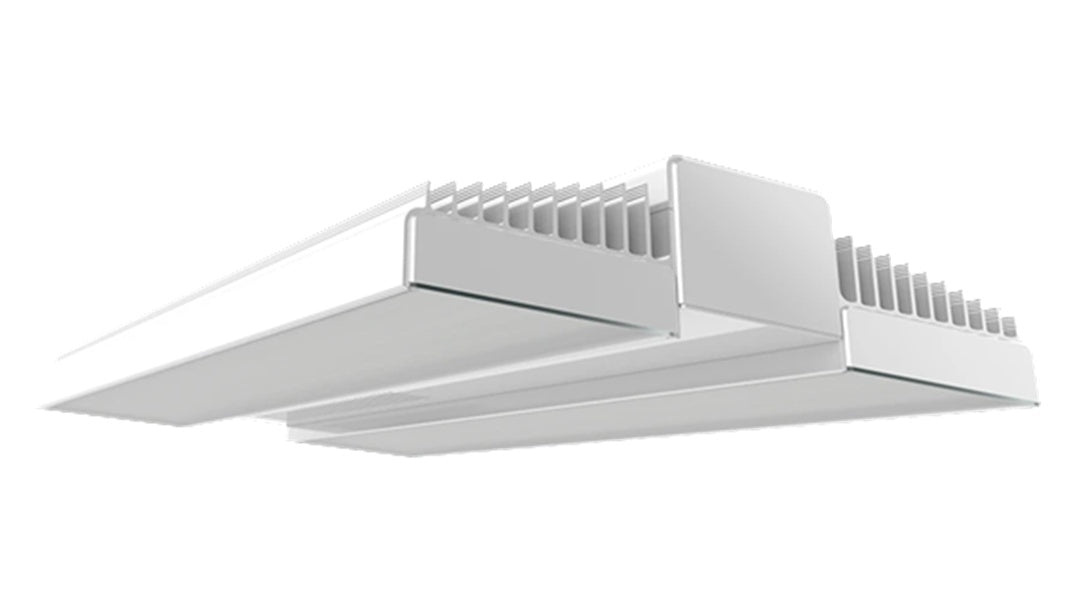

RAB RAIL175/LC Rail LED High Bay with Lightcloud Control System, Lightcloud Highbay Sensor, 5000K (Cool), 25527 Lumens, 83 CRI, 120-277V, Dimmable, White Finish
RAB RAIL175/LC Rail LED High Bay with Lightcloud Control System, Lightcloud Highbay Sensor, 5000K (Cool), 25527 Lumens, 83 CRI, 120-277V, Dimmable, White Finish
Regular price
Price:
$638.28
Regular price
Price:
Sale price
$638.28
Unit price
per
Ordering a Large Quantity?
Request a quote
description
|
Lightcloud
|
|
|
Installed with Lightcloud
|
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
|
|
Compliance
|
|
|
UL Listed
|
Suitable for damp locations
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
Trade Agreements Act Compliant
|
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
|
|
DLC Listed
|
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
|
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
Equivalent to 400W Metal Halide
|
|
LED Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy, surface-mount LEDs
|
|
Color Consistency
|
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
|
|
Color Stability
|
LED Color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
|
|
Color Uniformity
|
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
|
|
Electrical
|
|
|
Driver
|
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 1.45A, 208V: 0.84A, 240V: 0.72A, 277V 0.63A
|
|
THD
|
2.05% at 120V, 8.21% at 277V
|
|
Power Factor
|
99.8% at 120V, 95.9% at 277V
|
|
Surge Protection
|
6 kV
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting temperature is -4°F (-20°C)
|
|
Maximum Ambient Temperature
|
Suitable for use in up to 113°F (45°C)
|
|
Housing
|
Extruded aluminum
|
|
Lens
|
Polycarbonate lens
|
|
Reflector
|
Polyethylene Terephthalate (PET)
|
|
Installation
|
|
|
Mounting
|
V hooks (chain by others)
|
|
Lightcloud
|
|
|
Lightcloud Controller Installed
|
Integrated/embedded networked lighting control, luminaire-level lighting control. Fixture, Zone, and plug-load control from one powerful device. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols. Offers the capability to set the maximum light output to a less-than-maximum state of an individual luminaire at the time of installation or commissioning. The High-End trim functionality is field reconfigurable via the Lightcloud mesh network communication protocols. The Lightcloud controller can be attached to the fixture, junction box, or electrical panel.
|
| DLC system - N1XMLOEATBA | Learn more at www.lightcloud.com |
|
Other
|
|
|
5-Year, No-Compromise Warranty
|
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
Download PDF specification Share your knowledge of this product. Be the first to write a review »
