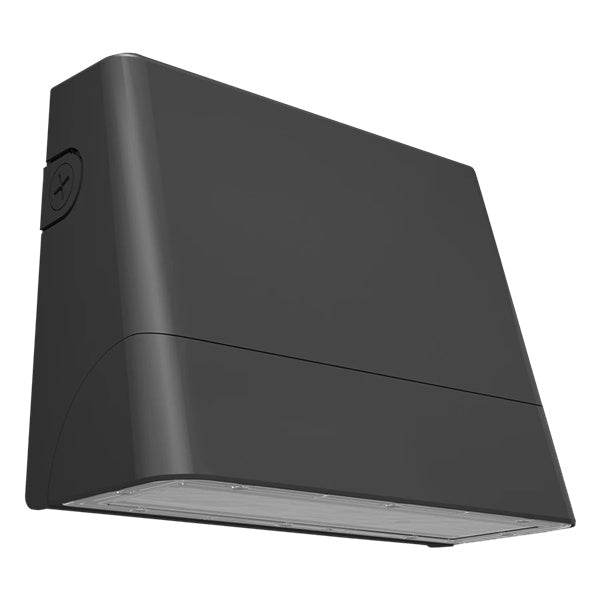

RAB Lighting SLIM22-S-60 Field Adjustable Slim LED Wallpack, 60/50/40/30W, 4418-8862 Lumens, 3000K/4000K/5000K, 80 CRI, Bronze Finish
RAB Lighting SLIM22-S-60 Field Adjustable Slim LED Wallpack, 60/50/40/30W, 4418-8862 Lumens, 3000K/4000K/5000K, 80 CRI, Bronze Finish
Regular price
Price:
$178.00
Regular price
Price:
Sale price
$178.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Optical Field Adjustability
|
45°, 30°, 15° and 0° (factory default 0°)
|
|
Field Adjustable
|
Field Adjustable Light Output:
|
| 60W/50W/40W/30W (factory default 60W) | |
| Color Temperature Selectable: | |
| 3000K, 4000K and 5000K (factory default 4000K) | |
|
Performance
|
|
|
Lifespan
|
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
|
|
Wattage Equivalency
|
50W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
|
|
LED Characteristics
|
|
|
LEDs
|
Edge-lit long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color.
|
|
Electrical
|
|
|
Driver
|
60W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.56A, 208V: 0.34A, 240V: 0.30A, 277V: 0.27A
|
| 50W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.47A, 208V: 0.30A, 240V: 0.25A, 277V: 0.23A | |
| 40W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.38A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19A | |
| 30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.29A, 208V: 0.19A, 240V: 0.17A, 277V: 0.14A | |
|
Dimming Driver
|
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
|
|
THD
|
60W: 4.53% at 120V, 10.6% at 277V
|
| 50W: 4.93% at 120V, 11.91% at 277V | |
| 40W: 5.74% at 120V, 14.66% at 277V | |
| 30W: 7.54% at 120V, 19.61% at 277V | |
|
Power Factor
|
60W: 99.7% at 120V, 94.6% at 277V
|
| 50W: 99.6% at 120V, 93.5% at 277V | |
| 40W: 99.4% at 120V, 91.4% at 277V | |
| 30W: 99% at 120V, 87% at 277V | |
|
Aux Power Supply
|
Yes
|
|
Dim to Off
|
Yes
|
|
Photocell
|
120-277V selectable photocell that can be turned on and off.
|
|
Surge Protection
|
DM(L/N): 6 kV, CM(L/N-PE): 6 kV
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting temperature is -40°F (-40°C)
|
|
Maximum Ambient Temperature
|
Suitable for use in up to 104°F (40°C)
|
|
Housing
|
Die-cast aluminum
|
|
Lens
|
Polycarbonate lens
|
|
Gaskets
|
High-temperature silicone
|
|
Finish
|
Formulated for high durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free. RoHS-compliant components.
|
|
Compliance
|
|
|
UL Listed
|
Suitable for wet locations
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating of IP65 for dust and water
|
|
DLC Listed
|
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase
|
|
Installation
|
|
|
Mounting
|
Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap
|
|
Optical
|
|
|
BUG Rating
|
60W: B3 U0 G1
|
| 50W: B3 U0 G1 | |
| 40W: B3 U0 G1 | |
| 30W: B2 U0 G1 | |
|
Other
|
|
|
5-Year Limited Warranty
|
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
