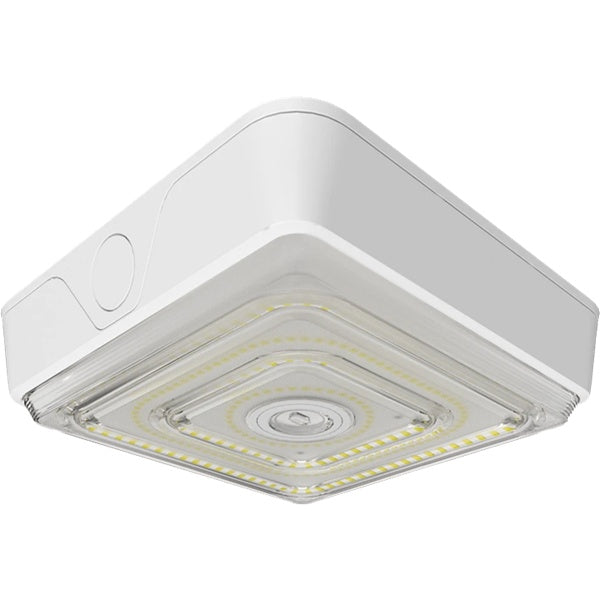

RAB VAN40W 40/30/20W Square Field-Adjustable Garage Canopy LED Light, 3000K/4000K/5000K, 2687-5696 Lumens, White

Field Adjustable Light Output:

Canopy Light

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP66 for dust and water

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Polycarbonate lens distributes light evenly and smoothly for general lighting applications

The minimum starting temperature is -40°F (-40°C)

Suitable for use in up to 122°F (50°C)

Square

Precision die-cast aluminum housing and door frame

IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.

Formulated for high durability and long-lasting color

Ethylene Propylene Diene Monomer (EPDM)

Constant Current, Class 1, Non-Isolated, 120-277V 50/60 Hz;

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Yes

Yes

6 kV

Integrated sensor port allows for simple, quick sensor attachment without the need for fixture modification or additional materials.

Retrofit mounting plates for ceiling mounting

The RAB 10-year combination warranty provides 5 years of no-compromise coverage and then a second 5 years of limited coverage. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
