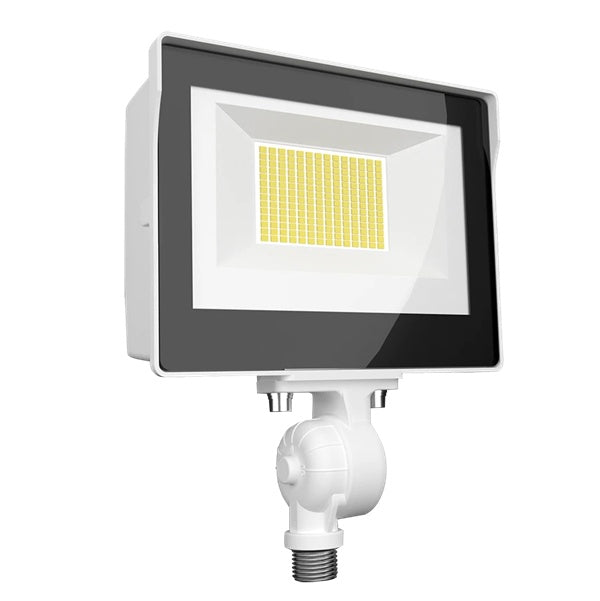

RAB X17FA15W 15W LED Floodlight, 2123 Lumens, 120-277V, 3000K, 4000K and 5000K Color Temperature, 80 CRI, White
RAB X17FA15W 15W LED Floodlight, 2123 Lumens, 120-277V, 3000K, 4000K and 5000K Color Temperature, 80 CRI, White
Regular price
Price:
$56.45
Regular price
Price:
Sale price
$56.45
Unit price
per
Ordering a Large Quantity?
Request a quote
description
| Field Adjustability | |
|
Field Adjustable
|
Color temperature selectable by 3000K, 4000K and 5000K
|
|
Compliance
|
|
|
UL Listed
|
Suitable for wet locations
|
|
IESNA LM-79 & LM-80 Testing
|
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
|
|
IP Rating
|
Ingress protection rating of IP65 for dust and water
|
|
DLC Listed
|
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
|
|
Electrical
|
|
|
Driver
|
Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
|
|
Dimming Driver
|
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
|
|
THD
|
9.25% at 120V, 10.25% at 277V
|
|
Power Factor
|
99.9% at 120V, 90.9% at 277V
|
|
Photocell
|
120-277V selectable photocell that can be turned on and off.
|
|
Surge Protection
|
6 kV
|
|
LED Characteristics
|
|
|
LEDs
|
Long-life, high-efficacy, surface-mount LEDs
|
|
Color Uniformity
|
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
|
|
Construction
|
|
|
Cold Weather Starting
|
The minimum starting temperature is -40°F (-40°C)
|
|
Maximum Ambient Temperature
|
Suitable for use in up to 104°F (40°C)
|
|
Housing
|
Precision die-cast aluminum
|
|
Lens
|
Tempered glass
|
|
Reflector
|
Polycarbonate
|
|
Finish
|
Formulated for high durability and long-lasting color
|
|
Green Technology
|
Mercury and UV free. RoHS-compliant components.
|
|
Installation
|
|
|
Mounting
|
Robust knuckle mount with 180° adjustable swivel arm. Tilt angle in 10° increments.
|
|
Optical
|
|
|
NEMA Type
|
NEMA Beam Spread 7H x 7V
|
|
Other
|
|
|
5-Year Limited Warranty
|
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
|
|
Performance
|
|
|
Wattage Equivalency
|
Equivalent to 70W Metal Halide
|
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
