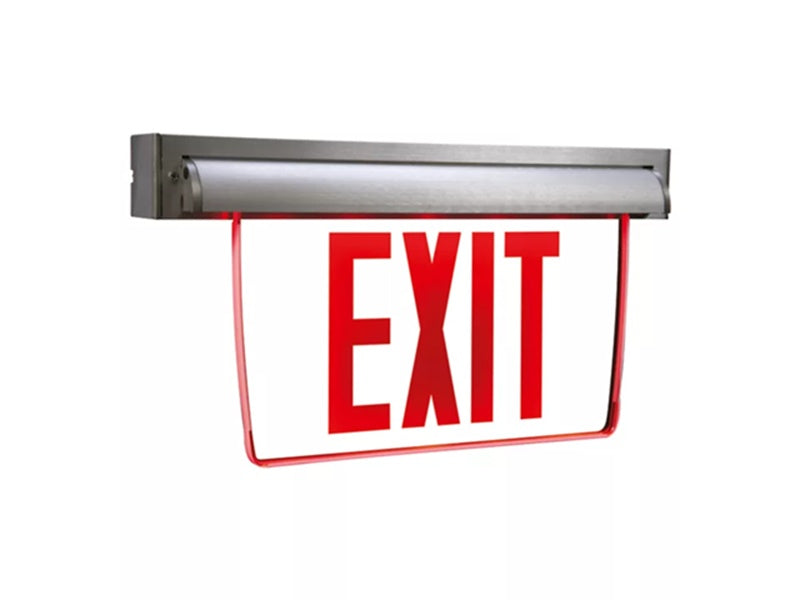

Sure Lites EUX6R Universal Mount Edge Lit LED Exit Sign, Universal Face Option, Red Exit Color, Brushed Aluminum Housing

PRODUCT FAMILY SPECIFICATIONS

Electrical

• Dual Voltage Input, 120/277 VAC, 60 Hz
• EZ key external battery disconnect
• 10°C to 40°C (50°F to 104°F) operating range

• Self-Diagnostic System option
• Long life LED light source
• Fully recharged in 24 hours
• Solid-state Voltage Limited Charger
• Solid-state Switching
• Brownout Circuit
• Low-Voltage Disconnect
• Overload/Short Circuit Protection

• Test Switch/Power Indicator Light
• Photocell Test Switch (requires accessory laser for activation)
• Two circuit (-2C) option available for AC only
• Fire alarm interface (FAI) option available for selfpowered


Battery

• Sealed nickel cadmium
• Maintenance-free
• 24-hour full recharge time


Housing Construction

• All aluminum housing
• All mounting options are standard: surface, recessed, end, ceiling and wall
• Available in brushed aluminum, white or black
• Halo Got Nail hangar bars included for recessed applications

• Convenient 1/2" knockouts on top and end of fixture
• Mullion mount option available for all versions (-MUL)
• The EUX housings and lens panels are shipped in separate boxes.


Trim/Lens for Universal

• High impact acrylic panel
• Available with red or green letters
• Single and double sided lenses included
• Clear, mirror insert and white insert options included
• Field installed and NFPA 101 compliant chevron directional indicators included
• No Tools required for "snap-in" installation
• Pre-specified chevron lens kits available for an enhanced aesthetic


Trim/Lens Kit for Single or Double

• High impact acrylic panel
• Available with red or green letters
• Clear, mirror insert, and white insert options included
• Field configurable for single (61,71) or double (62,72) sided
• Field installed and NFPA 101 compliant chevron directional indicators included
• No tools required for "snap-in" construction


Warranty

• Fixture: 5-year
• Battery: 7-year pro-rata
