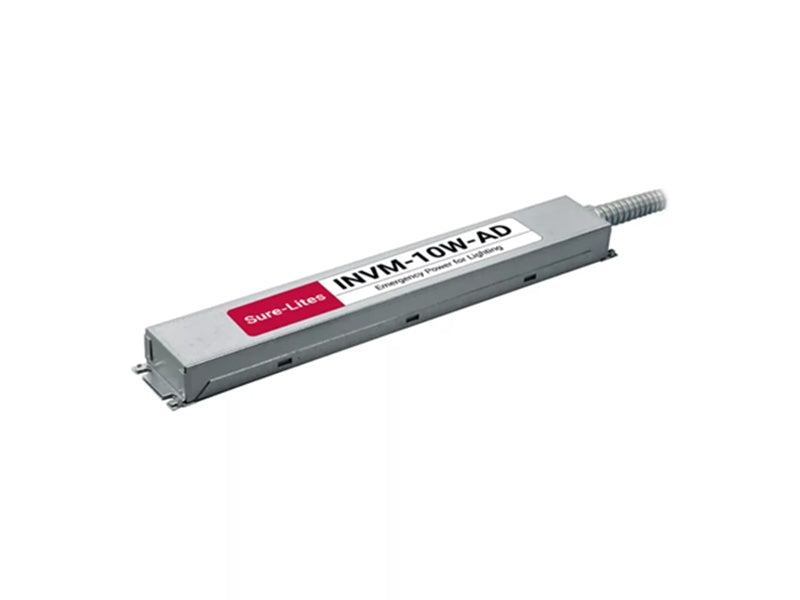

Sure-Lites-INVM-10W-AD Emergency Power for Lighting, 10VA Output Micro Inverter, 0-10V Auto Dimming to Max 50VA Load

FAMILY PRODUCT SPECIFICATIONS

Electrical/Application

• Universal 120~277VAC 50/60Hz, 80 mA input
• Automatically selected output voltage: 120 VAC +/- 10% or 277 VAC +/- 10%, 60Hz

• Compatible with LED, fluorescent or incandescent light fixtures

• Provides 90-minutes of emergency power

• 2~5 second transfer time

• 24-hour recharge time

• Max output power 10VA, supports up to 50VA 0-10V dimmable loads

• Max output power 10VA for non-dimmable loads

• Provides pure sine wave power to the AC input side of the fixture for easy field installation
• Can provide emergency power to indoor and outdoor lighting (not rated for outdoor mounting locations)
• Remote mounting up to 250 feet maximum
• Low voltage disconnect prevents battery from deep discharge
• Temperature Rating (Ambient) 32° F to 122° F (0°C to 50° C)

0-10V Auto Dimming

• 0-10V auto dimming feature allows a lighting load of up to 50VA to be dimmed to 10VA maximum emergency output power
• The INVM-10W-AD passes the normal room or fixture dimming control signal (0-10 V) during normal operation (AC mains on) so normal dimming operation of the luminaire is not affected.

Installation

• Compatible with switched or unswitched fixtures
• Can be installed on or near the fixture
• Remote mounting up to 250 feet


Construction

• Steel housing with conduit


Battery

• Maintenance free lithium-ion


Warranty

•  5-year limited warranty


Charging Indicator Light / Test Switch

• Integrated LED Test Switch


Code Compliance

• UL 924 damp location for factory or field installation
• CSA 22.2, No.141 compliant
• NEC, NFPA, OSHA compliant
• CEC Title 20 compliant
• National Building Code of Canada (NBC), National Fire Code of Canada (NFPC)


Specification

• Emergency lighting shall be provided by using a standard fixture or group of fixtures powered with a Sure-Lites INVM-10W-AD inverter.
• The INVM-10W-AD unit consists of batteries, and electronic battery charging and output circuitry contained in one metal case.
• The INVM-10W-AD unit shall be capable of powering dimmable fluorescent and/or LED lighting fixtures rated at up to 50W of input power at 0°C to 50°C for a minimum of 90 minutes by the use of 0-10V dimming control.
• The INVM-10W-AD shall allow the emergency fixture to be on, off, switched or dimmed without affecting emergency operation.
• The INVM-10W-AD unit shall exceed emergency standards set forth by the current NEC and the Canadian Electrical Code.
• This device complies with Part 15 of the FCC Rules and meets California Energy Commission Title 20 efficiency requirements.
• It shall be UL Listed for the US and Canada, suitable for damp locations, and warranted for a full five years from date of manufacture.

FCC Compliance

• This device complies with Part 15 of the FCC Rules
